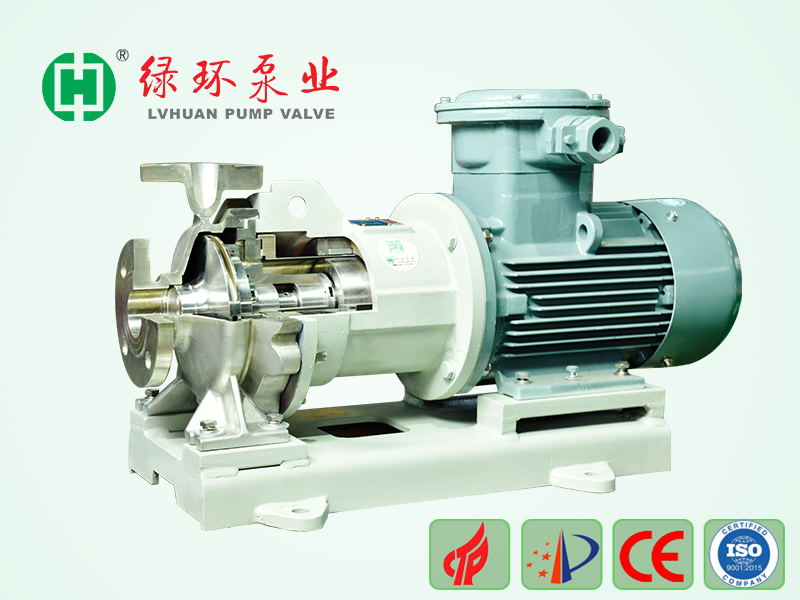

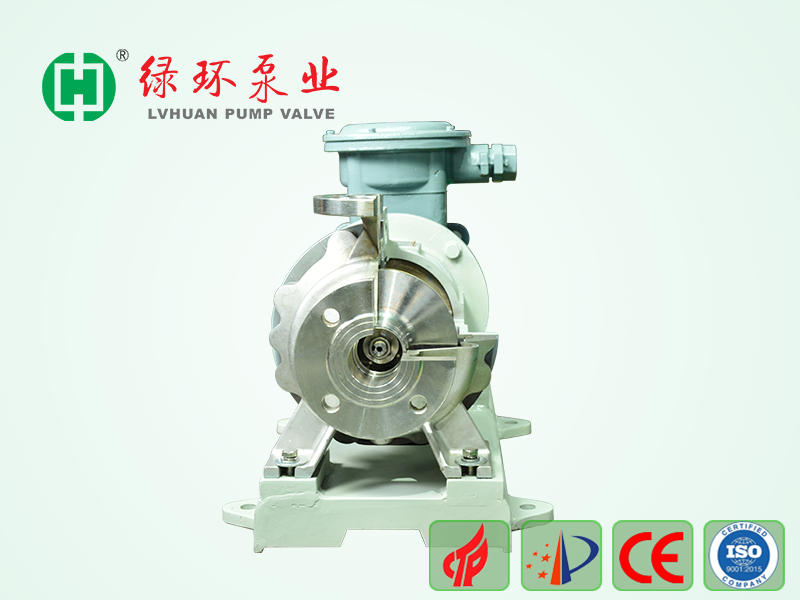

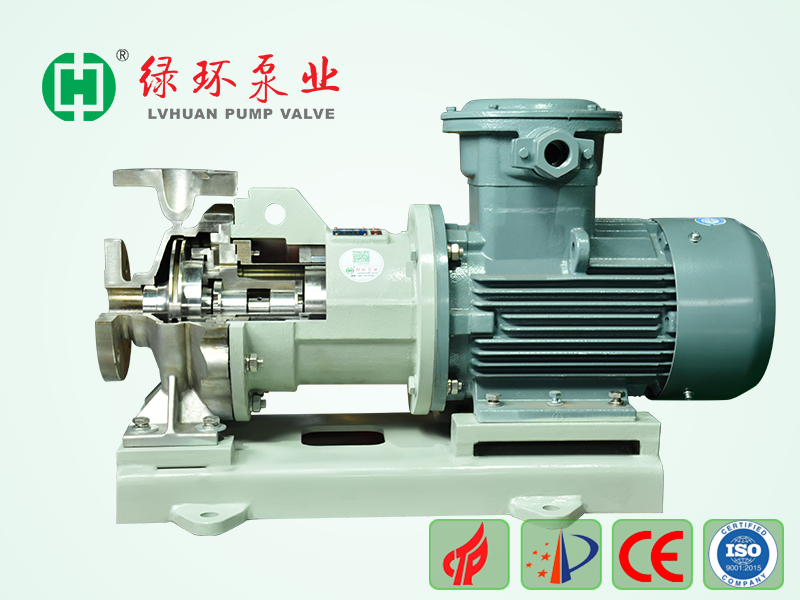

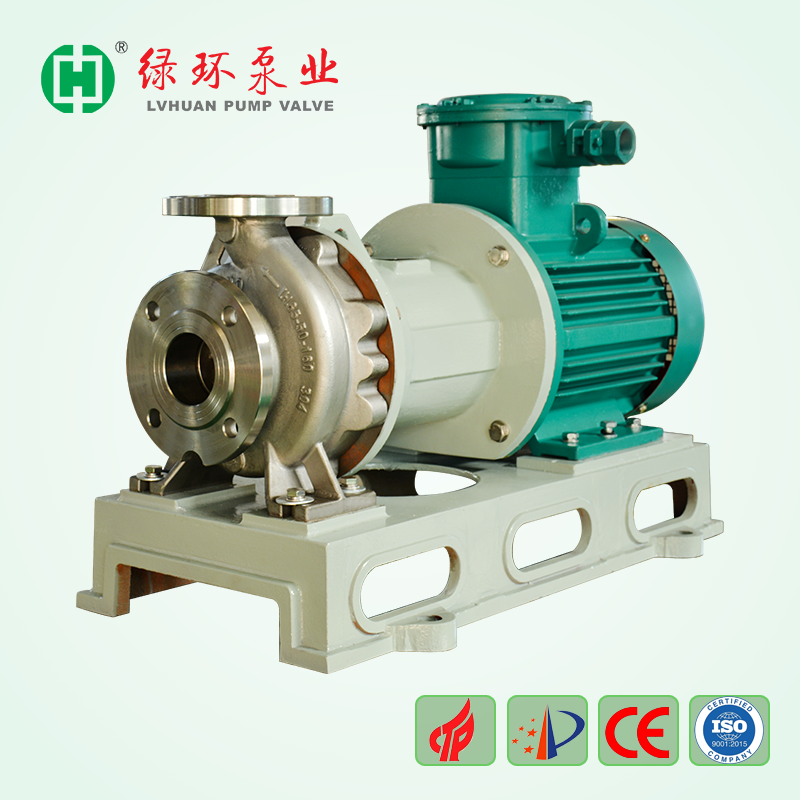

LC HEAVY DUTY MAGNET DRIVE PUMP

The TMC series stainless steel magnetic pump operates on the principle of

item no.:
LC-0001
lead time:
7-10 dyas
product orgin:
Anhui
shipping port:
Any port in China
payment:
L/C or T/T
color:
Customer color
Lining plastic:
304/316/316L/2205/TA2/HC276
Use:
Alkaline and solvent‑based materials

contact now

description

Description:Heavy-duty structure design, axial force self-balance, dynamic and static ring can be easily replaced, magnetic steel according to the working condition free combination, all components have strong versatility, modular design.

Pump body:ISO2858 standard pump body

Impeller:Silica sol precision casting, higher water efficiency (with front and rear mouth rings)

Pump cover:The special process is used for transition. The bearing seat with SSiC bearing, which is highly wear-resistant and can be easily replaced

Anti-thrust ring: Designed with anti thrust ring assembly and steel wire retaining ring design, it can be easily replaced independently. The impeller and rotor is independent.

Pump shaft: Lengthened 304 pump shaft + expansion sleeve +SSiC sleeve design, with the "SiC bearing" On the pump cover to wear support, hard to hard match, extremely long life, and not limited by temperature, its deformation is buffered by the expansion sleeve.

Inner rotor: The magnetic steel design according to different working conditions, arbitrary combination, inner rotor diameter is small, axial length, higher efficiency of transfer torque, and magnetic loss is almost zero.

External rotor: Multi-stage magnetic steel design can be combined to different working conditions, due to the small outer diameter, the outer magnetic barrel is thicker, separate external magnetic pressure plate, completely eliminate magnetic leakage.

Special structure design: LC has self-balancing device, can use water self-balancing impeller, life increased for more than 3 times.

DESIGN FEATURE

A. MAGNETIC CIRCUIT DESIGN:

1. Push-pull magnetic circuit design is adopted to achieve the highest transmission efficiency of internal and external magnetic torque.

2. Rational design of magnetic angle to maximize magnetic energy utilization;

3. Using a reasonable number of magnetic poles increase the static magnetic energy, more kinetic energy is converted, the magnetic

blocks is less under the same torque;

4. The yoke iron design is adopted, the yoke thickness iron is increased to avoid magnetic saturation, reduce magnetic resistance,

increase the magnetic density of the air gap, increase the transmitted torque, improve the performance of the internal magnetic rotor by 120%;

5. The magnetic tile is arranged in multiple groups, the heteropolar alternating group method is adopted, and the eddy current is closed between

each pole, forming m*z small eddy current (z row number of magnetic poles, m number of magnetic poles) eddy current loss is greatly reduced.
