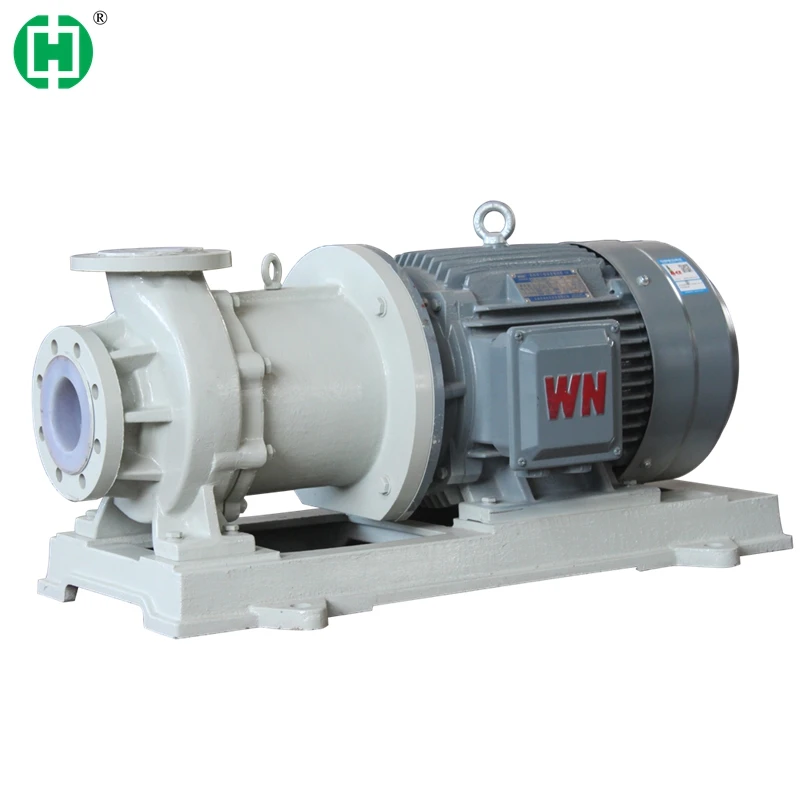

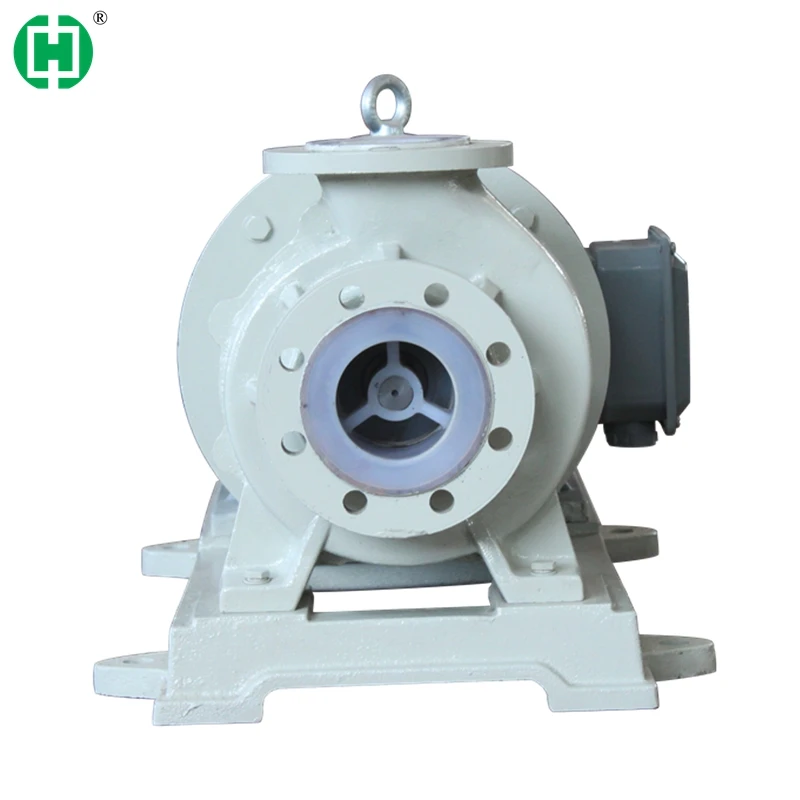

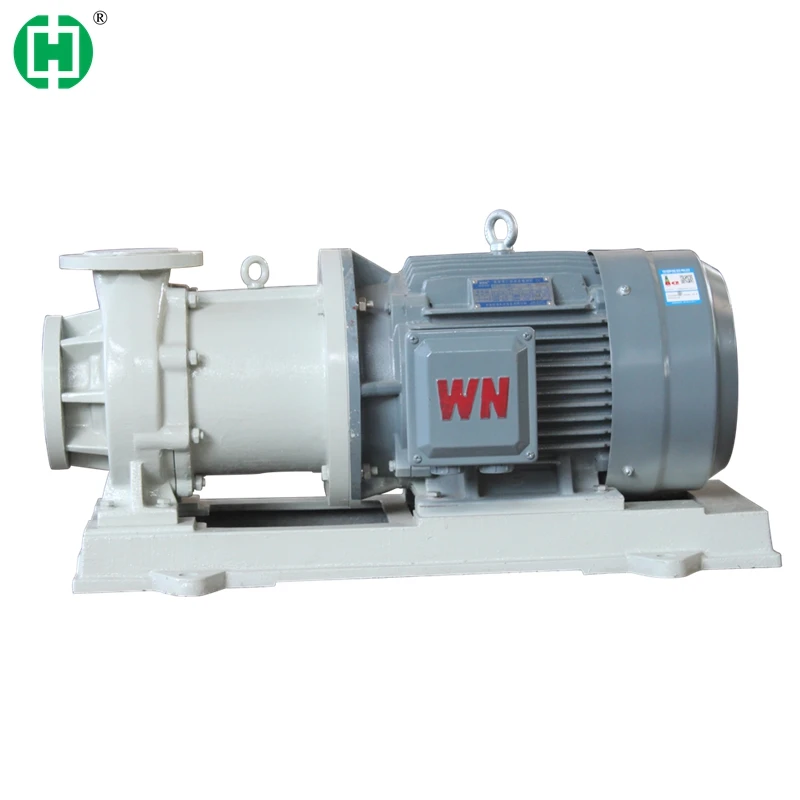

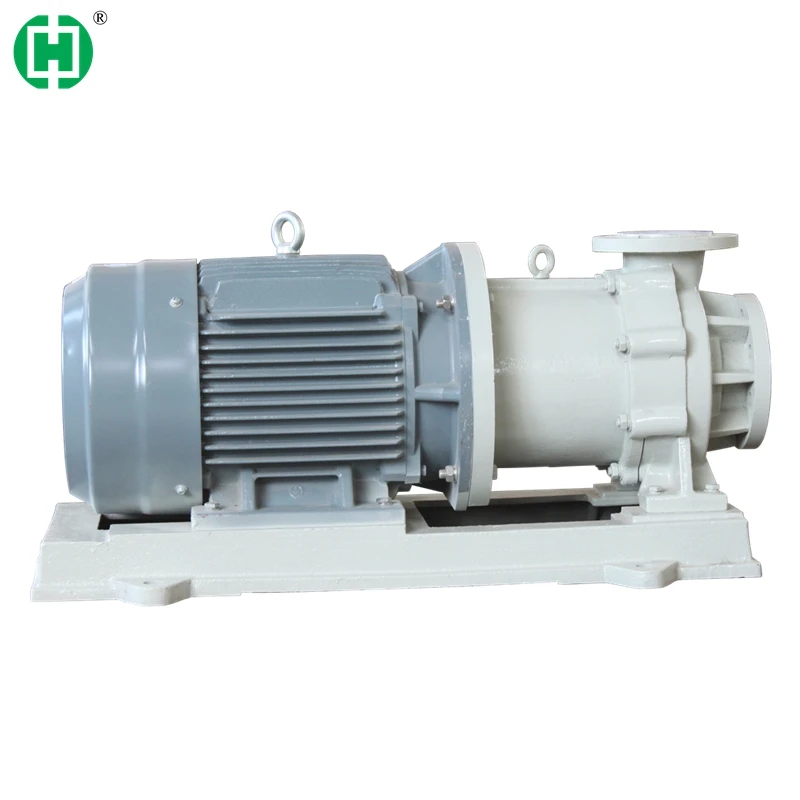

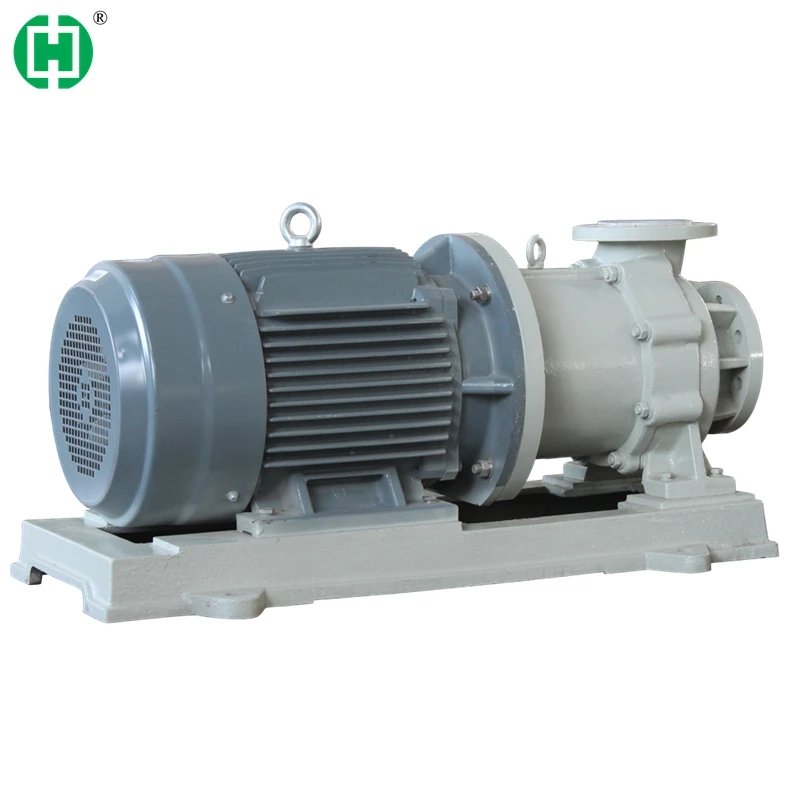

LHC Fluoroplastic Magnetic Pump (star product)

PRODUCT DESCRIPTION

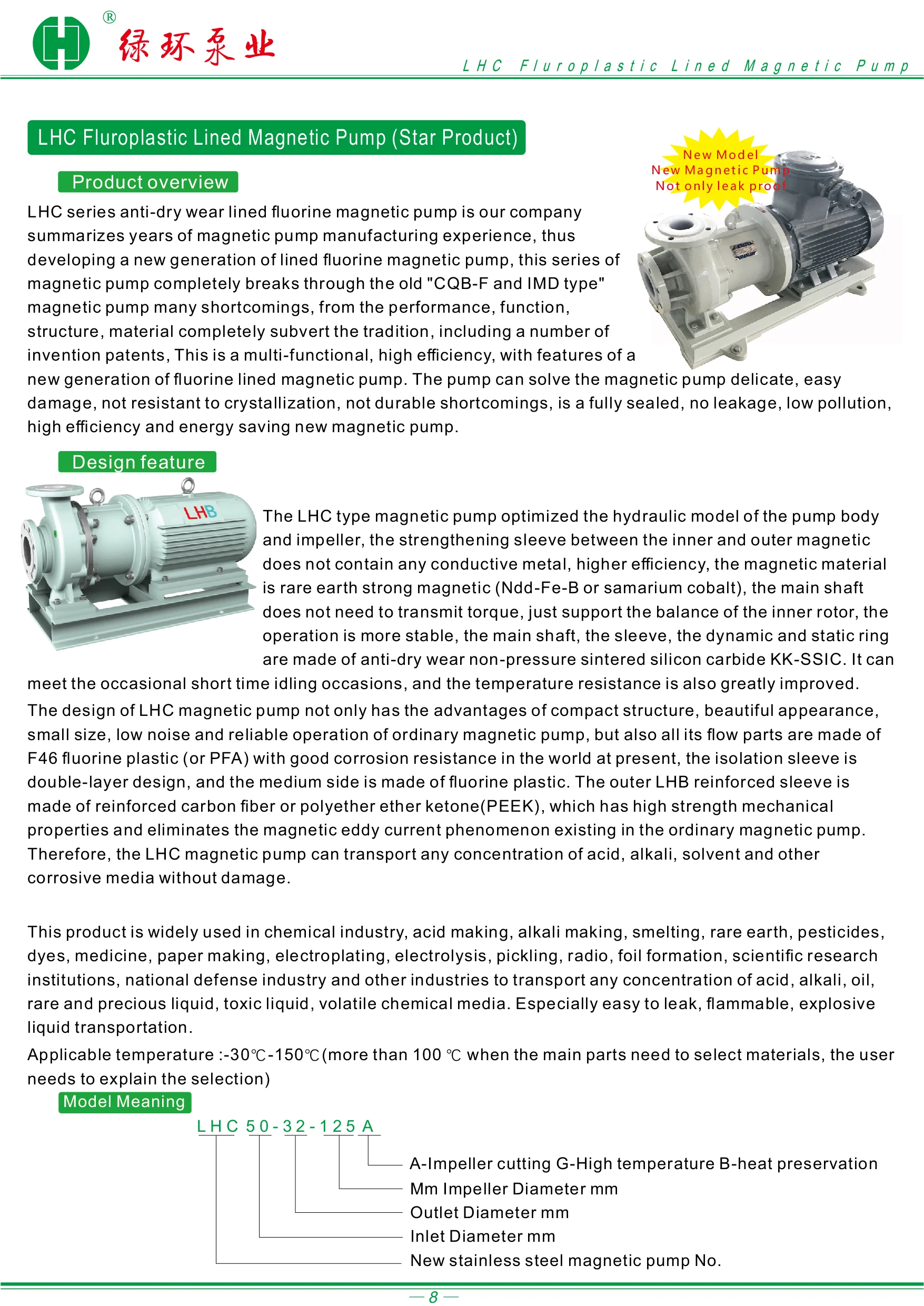

Product overview

LHC anti-dry wear lined fluorine magnetic pump is summarizes magnetic pump manufacturing experience, this magnetic pump completely breaks through the old “CQB-F and IMD type” magnetic pump have many shortcomings, from the performance, function, structure,completely subvert the tradition, including some invention patents, this is a multi-functional, high efficiency, with features of fluorine lined magnetic pump. The pump can solve the magnetic pump delicate, easy damage, not resistant to crystallization problem, not durable shortcomings, fully sealed, no leakage, low pollution, high efficiency and energy saving new magnet drive pump.

Design feature

The LHC magnetic pump optimized the hydraulic model body and impeller, the strengthen sleeve between the inner and outer magnetic does not contain any conductive metal, higher efficiency, the magnet is rare earth strong magnetic (ndd-fe-b or samarium cobalt), the main shaft does not need to transmit torque, just support the balance of the inner rotor, the operation is more stable, the main shaft, sleeve,dynamic and static ring are anti-dry wear non-pressure sintered silicon carbide KK-SSiC. It can meet the occasional short time idling occasions, the temperature resistance is also greatly improved.

The design not only has the advantages of compact structure, beautiful appearance, small size, low noise and reliable operation of ordinary magnetic pump, but also all its flow parts are F46 fluorine plastic (or PFA) with good corrosion resistance in the world at present, the isolation sleeve is double-layer design, and the medium side is made of fluorine plastic. The outer LHB reinforced sleeve is made of reinforced carbon fiber or polyether ether ketone(peek), which has high strength mechanical properties and eliminates the magnetic eddy current phenomenon existing in the ordinary magnetic pump. It can transport acid, alkali, solvent and other corrosive media without damage.

Main use

Widely used in chemical industry, acid making, alkali making, smelting, rare earth, pesticides, dyes, medicine, paper making, electroplating, electrolysis, pickling, radio, foil formation, scientific research institutions, national defense industry and other industries to transport any concentration of acid,alkali,oil,rare and precious,toxic liquid, volatile chemical media. Especially easy to leak, flammable, explosive liquid transportation.

Working temperature :-30℃-150℃( >100 ℃main parts need to select materials, need to explain the selection)

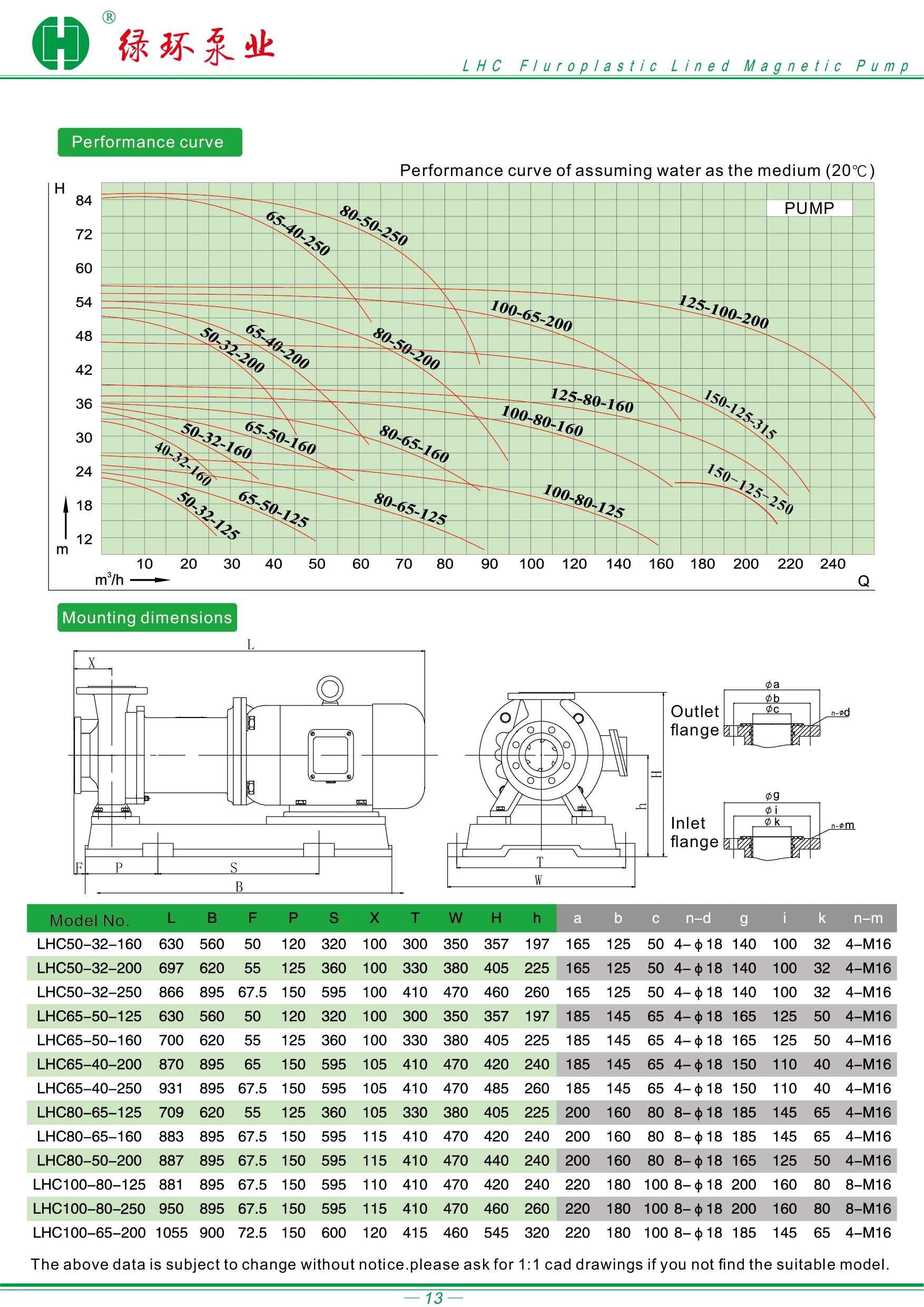

PRODUCT PARAMETERS

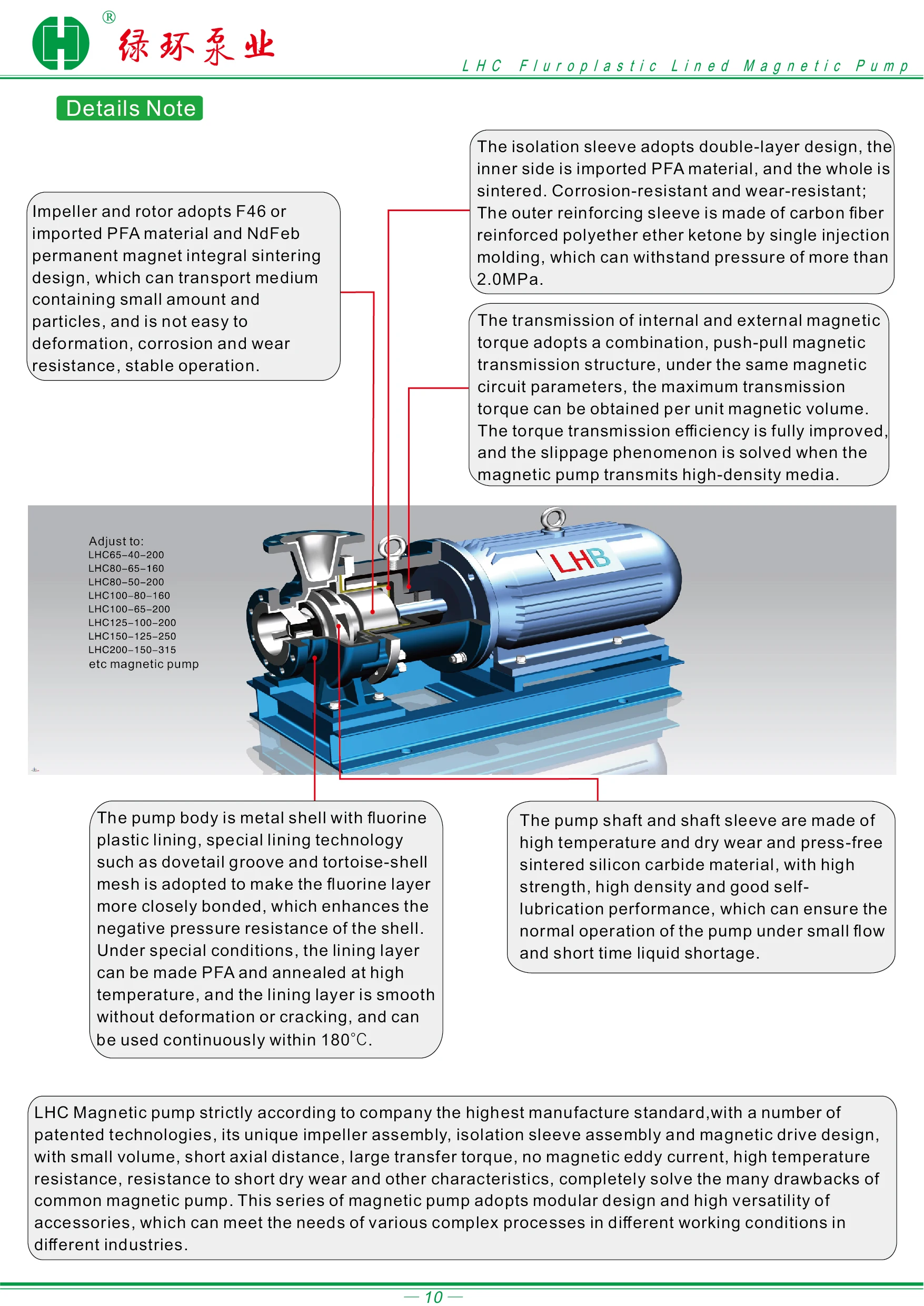

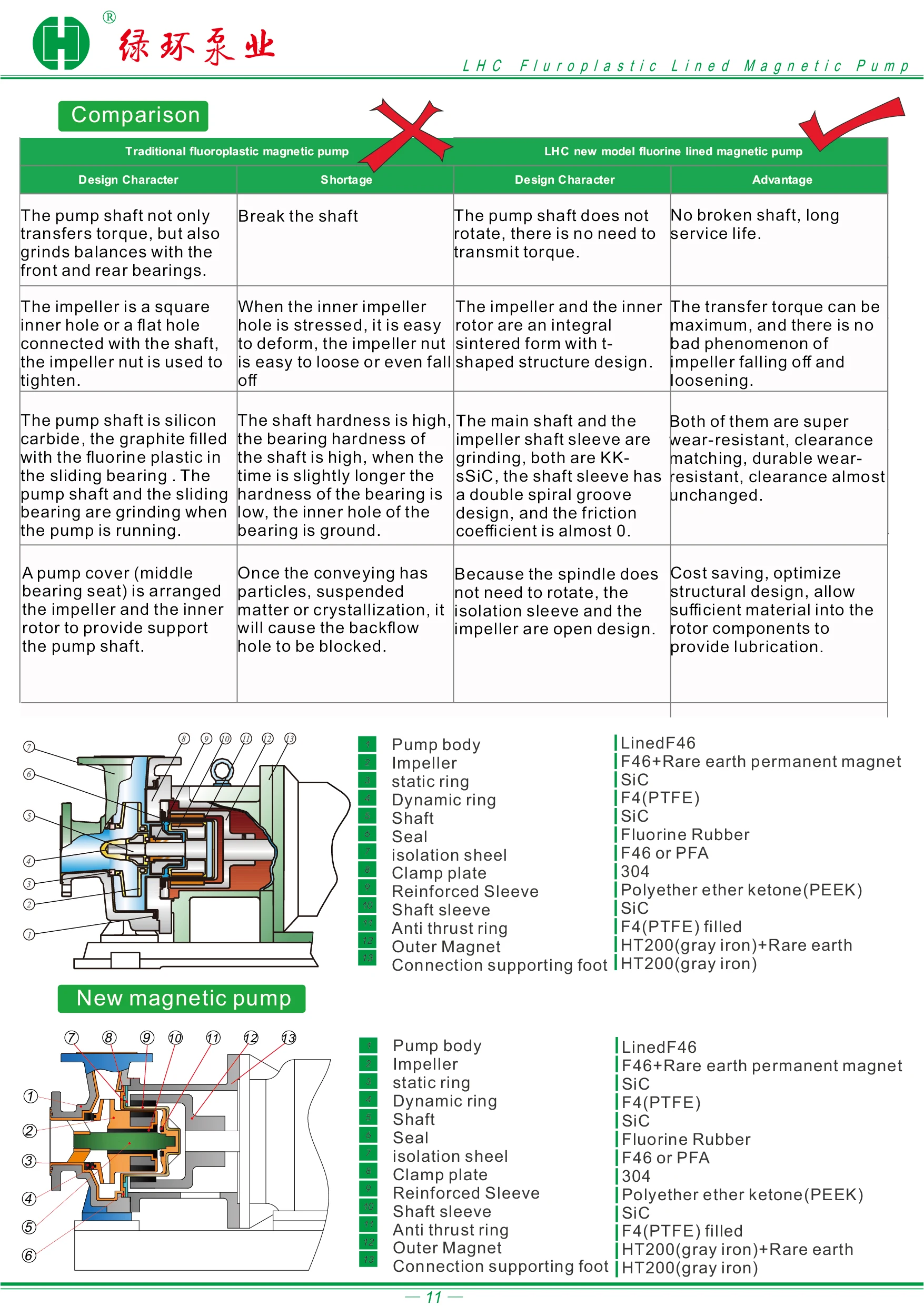

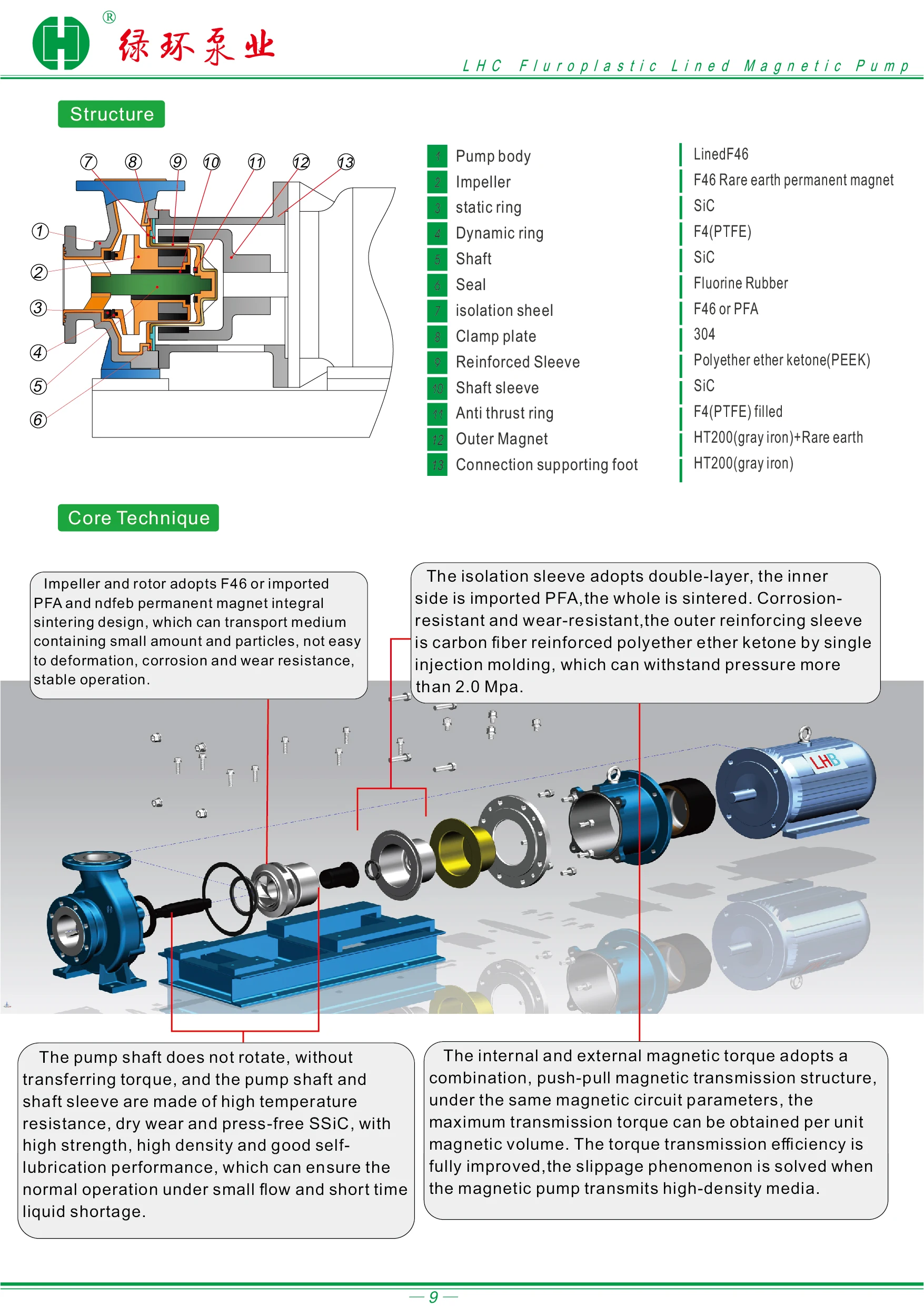

PRODUCT STRUCTURE DIAGRAM
