IHL Self-Priming Pump

IHL type stainless steel centrifugal pump LHJ type stainless steel slurry pump (key products) Product overview IHL type stainless steel centrifugal pump, LHJ type stainless steel slurry pump single-stage single-suction horizontal centrifugal pump. Its

item no.:
IHL-0001
lead time:
7-10 dyas
product orgin:
Anhui
shipping port:
Any port in China
payment:
L/C or T/T
color:
Customer color
Lining plastic:
304/316/316L/2205/TA2/HC276
Use:
Alkaline and solvent‑based materials
price range:
800-20000

contact now

description

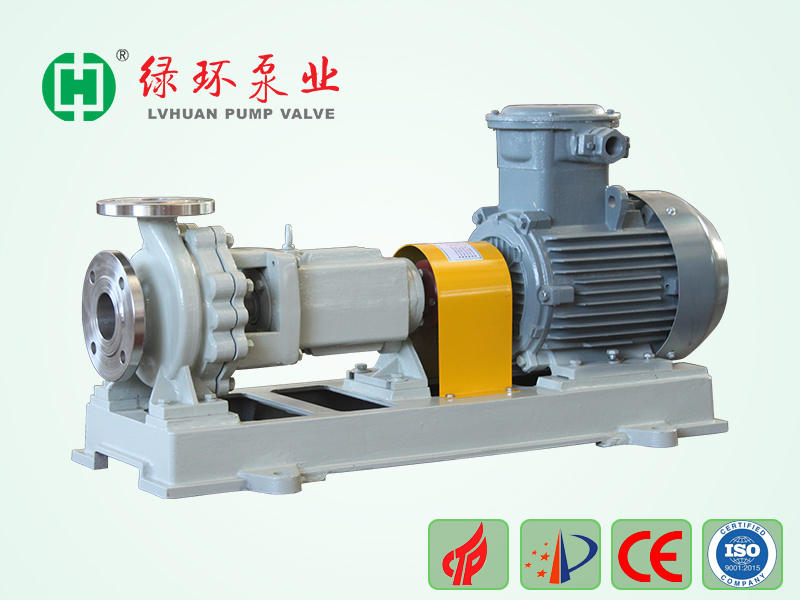

IHL type stainless steel centrifugal pump

LHJ type stainless steel slurry pump (key products)

Product overview

IHL type stainless steel centrifugal pump, LHJ type stainless steel slurry pump single-stage single-suction horizontal centrifugal pump. Its marking, rated performance point and size, using the international standard ISO2858, national ministry of machinery industry, replace the f-type corrosion resistant centrifugal pump, the replacement of the product. Can meet the chemical process to transport corrosive, viscosity similar to water liquid, the temperature of the transport medium is generally -20 to 100℃, if necessary, the appropriate cooling measures, the temperature of the transport medium can be higher than 200℃.

This pumps is based on the upgrading and optimization of the original IH chemical pump, IHL chemical centrifugal pump has wider applicability and more stable operation.

Design feature

1, The pump uses a new hydraulic model, the efficiency is 5% higher than the ordinary ih pump, thickening the shaft diameter, lengthening the bearing box, increasing the bearing, shortening the cantilever ratio, so that its performance is more stable, the pump can be configured according to different working conditions, different seals, so that the transmission medium range is wider, and the relative price is lower, is the chemical equipment commonly used by major enterprises.

2, Pump shaft seal: Single end mounted mechanical seal (standard), single end mounted mechanical seal, double end mounted mechanical seal (wear-resistant, with water cooling), packaged mechanical seal (high configuration);

3, Suspension components: Suspension components adopt modular design, high degree of universality.

4, Pump: The main flow parts are standard 304, can be customized 304L, 316, 316L, 2205, special stainless steel, etc., it can meet the transmission of different media, long service life.
