LHY Fluoroplastic Submersible Pump

LHY Fluoroplastic Submersible Pump Product overview LHY fluoroplastic submerged pump is designed in accordance with national standards, suitable for long-term transport of any concentration of strong acid, alkali, salt, strong oxidizer and other corro

item no.:
LHY-001
lead time:
5-7 days
product orgin:
ANHUI-CHINA
shipping port:
Any Port in China
payment:
T/T,Credit Card,Alipay
color:
Grey
Lining plastic:
PTFE FEP PFA PP PVDF
Use:
Chemical industry
price range:
2000-4000USD

contact now

description

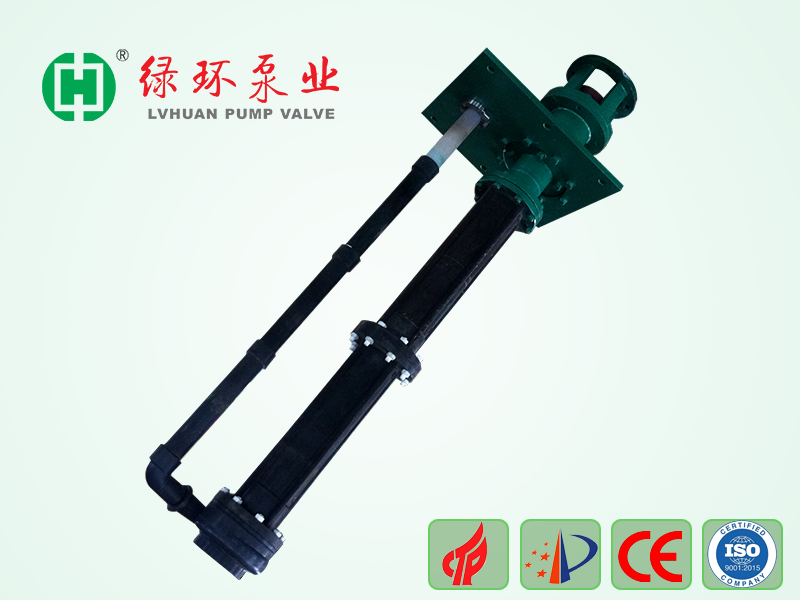

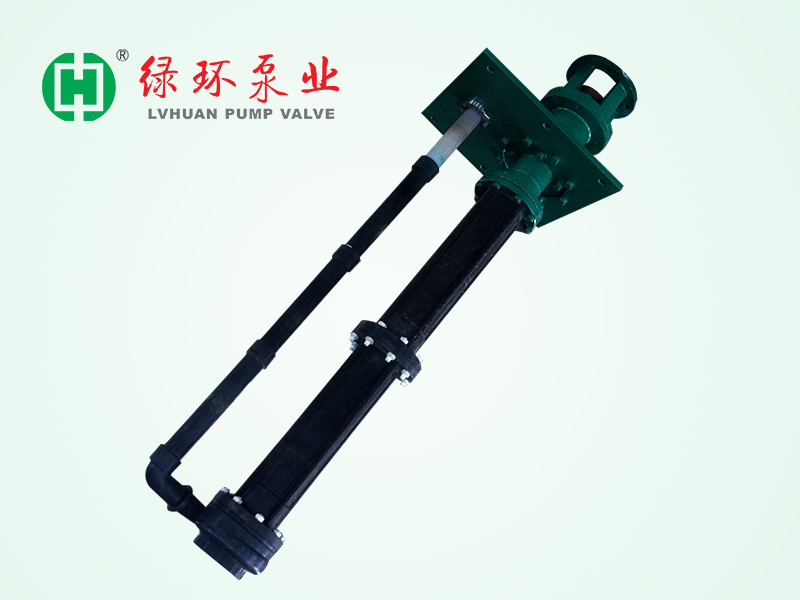

LHY Fluoroplastic Submersible Pump
Product overview
LHY fluoroplastic submerged pump is designed in accordance with national standards, suitable for long-term transport of any concentration of strong acid, alkali, salt, strong oxidizer and other corrosive media, its shell, main pipe, outlet pipe and flow parts are all made of plastic alloy (PTFE, FEP) molded, pump host part is all placed in the liquid. It has the characteristics of strong corrosion resistance, good wear resistance, high mechanical strength, no oxidation, no toxin decomposition. Reasonable design, compact structure, reliable performance, easy to use and maintenance, smooth runner high efficiency, high efficiency and energy saving, won the provincial quality product and provincial excellent new product award.

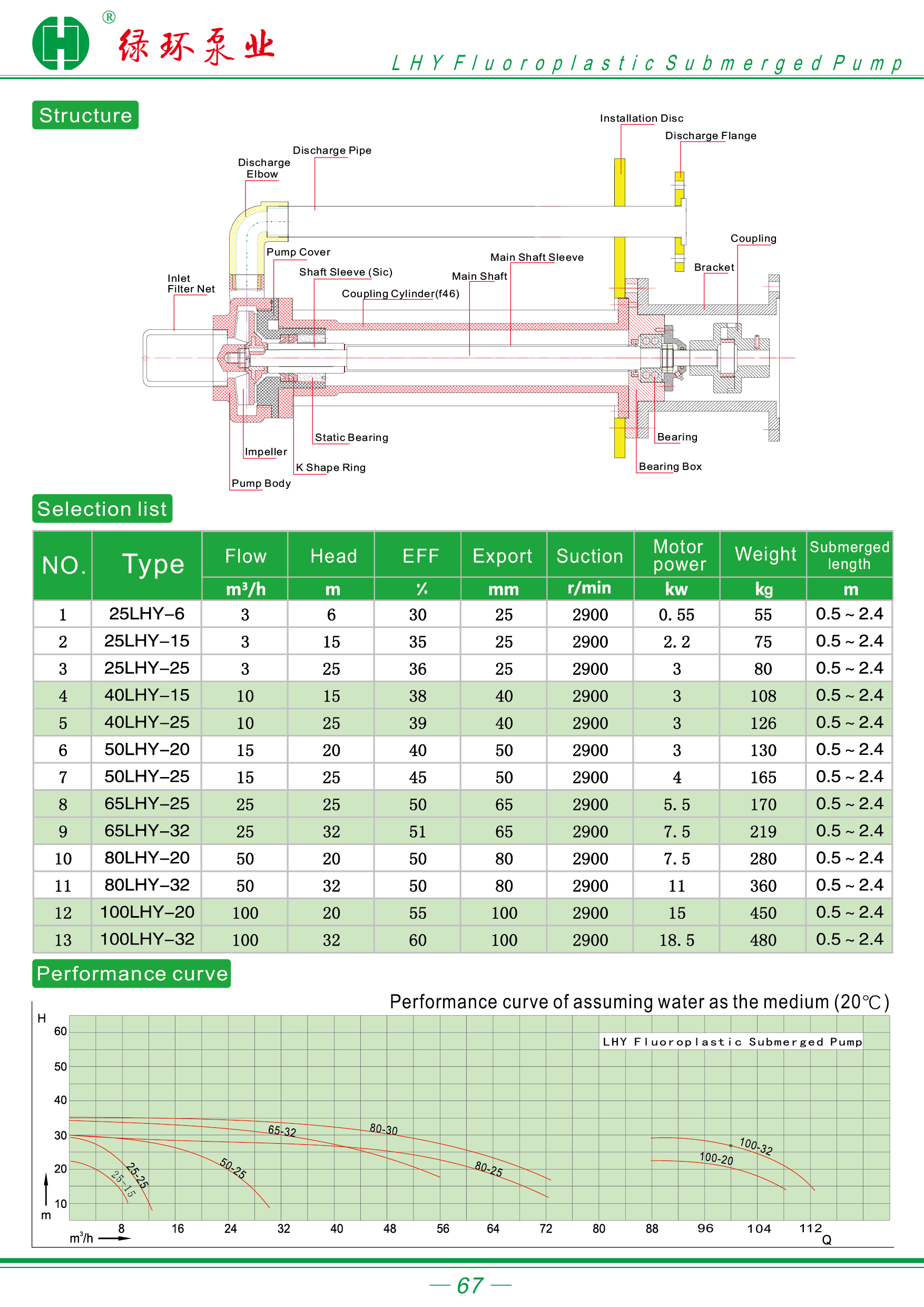

Design feature
1, LHY fluorine plastic submerged pump is a small flow, low head, fully sealed, no leakage, high efficiency and energy saving acid liquid centrifugal pump;
2, the pump body, impeller and pump cover using cfd computational fluid mechanics, design hydraulic components, module design and sintering. It has the characteristics of high efficiency, good cavitation residual performance, small radial force, accurate size, good interchangeability, spacious and smooth flow path, etc.
3, fluorine plastic alloy (PTFE, FEP) is a very excellent corrosion resistant material (commonly known as: Plastic king), any strong (strong) degree of acid, alkali, oxidizer and other corrosive media without damage;
4, no shaft seal, sliding bearing, sleeve using high wear-resistant temperature graphite, PTFE and other materials, effectively ensure the service life;
5, without independent lubrication and cooling water, reducing energy consumption.
6, vertical direct insertion installation, compact structure, small vibration, low noise, high efficiency, smooth operation, that is, open and pumped, no leakage;

Main use
LHY submerged pump can be widely used in chemical industry, non-ferrous metal smelting, pesticide, acid and alkali making, paper making, pickling process, rare earth separation, electroplating, electronics, foil formation, acid and alkali unloading and other industries or workflow, is a chemical submerged pump structure is very novel products, and energy efficient, safe and practical.
The applicable temperature:-20℃-100℃.

tags : For submersible depth 500-2400mm
