Customization instructions: All specifications are customized according to the actual situation of the customer, and non-standard customization is supported.
| Material quality | fluorine lined f46 |
|---|---|
| Performance parameter | Flow:8-450m³/h Head:1.8-53m |
| Power | 0.025-110kw |
| Applicable media | sulphuric acid/alkali |
Inventory delivery: LC heavy-duty self balancing metal magnetic pump is in stock, with nationwide delivery guarantee!
Special note: The product images and parameters may differ slightly from the actual product.
PRODUCT DESCRIPTION

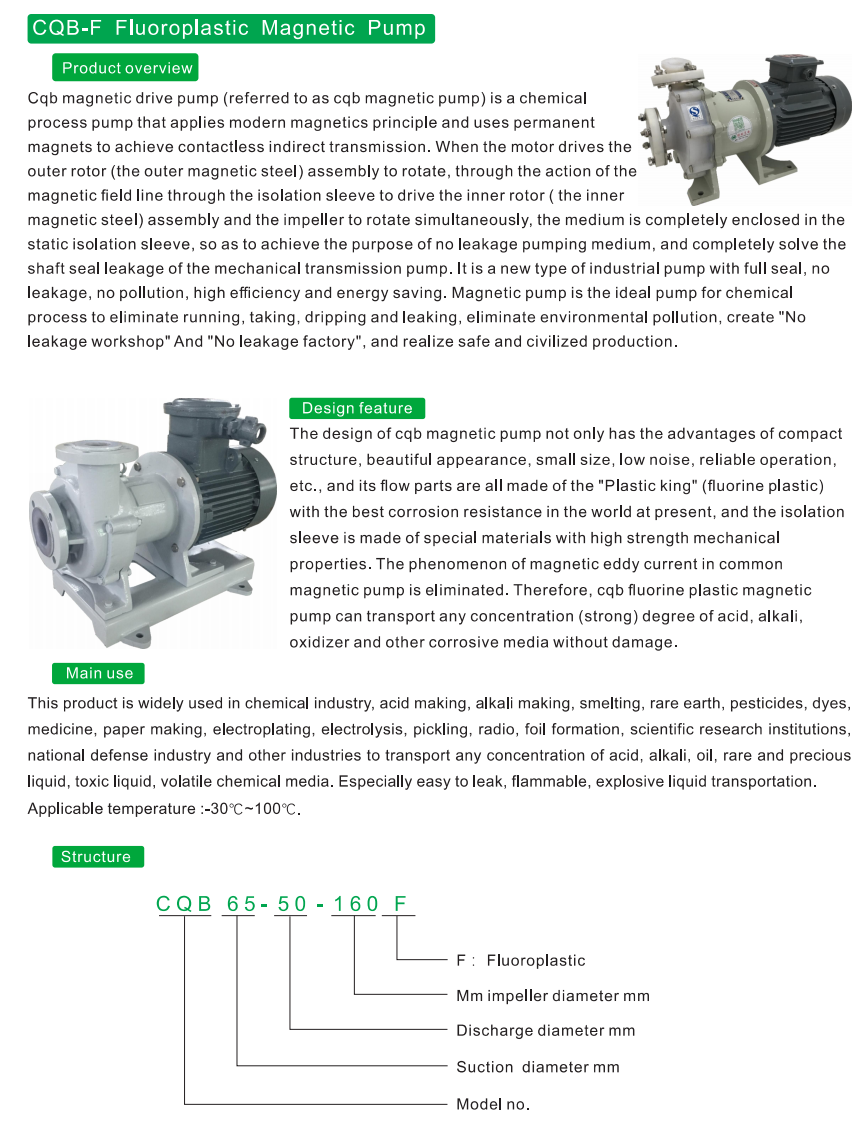

CQB-F magnetic drive pump (referred to as cqb magnetic pump) is a chemical process pump that applies modern magnetics principle and uses permanent magnets to achieve contactless indirect transmission. When the motor drives the outer rotor (the outer magnetic steel) assembly to rotate, through the action of the magnetic field line through the isolation sleeve to drive the inner rotor ( the inner magnetic steel) assembly and the impeller to rotate simultaneously, the medium is completely enclosed in the static isolation sleeve, so as to achieve the purpose of no leakage pumping medium, and completely solve the shaft seal leakage of the mechanical transmission pump. It is a new type of industrial pump with full seal, no leakage, no pollution, high efficiency and energy saving. Magnetic pump is the ideal pump for chemical process to eliminate running, taking, dripping and leaking, eliminate environmental pollution, create “No leakage workshop” And “No leakage factory”, and realize safe and civilized production.
Design Feature
The design of cqb magnetic pump not only has the advantages of compact structure, beautiful appearance, small size, low noise, reliable operation, etc., and its flow parts are all made of the “Plastic king” (fluorine plastic) with the best corrosion resistance in the world at present, and the isolation sleeve is made of special materials with high strength mechanical properties. The phenomenon of magnetic eddy current in common magnetic pump is eliminated. Therefore, cqb fluorine plastic magnetic pump can transport any concentration (strong) degree of acid, alkali, oxidizer and other corrosive media without damage.
Main Use
This product is widely used in chemical industry, acid making, alkali making, smelting, rare earth, pesticides, dyes, medicine, paper making, electroplating, electrolysis, pickling, radio, foil formation, scientific research institutions, national defense industry and other industries to transport any concentration of acid, alkali, oil, rare and precious liquid, toxic liquid, volatile chemical media. Especially easy to leak, flammable, explosive liquid transportation.
Applicable temperature :-30℃~100℃

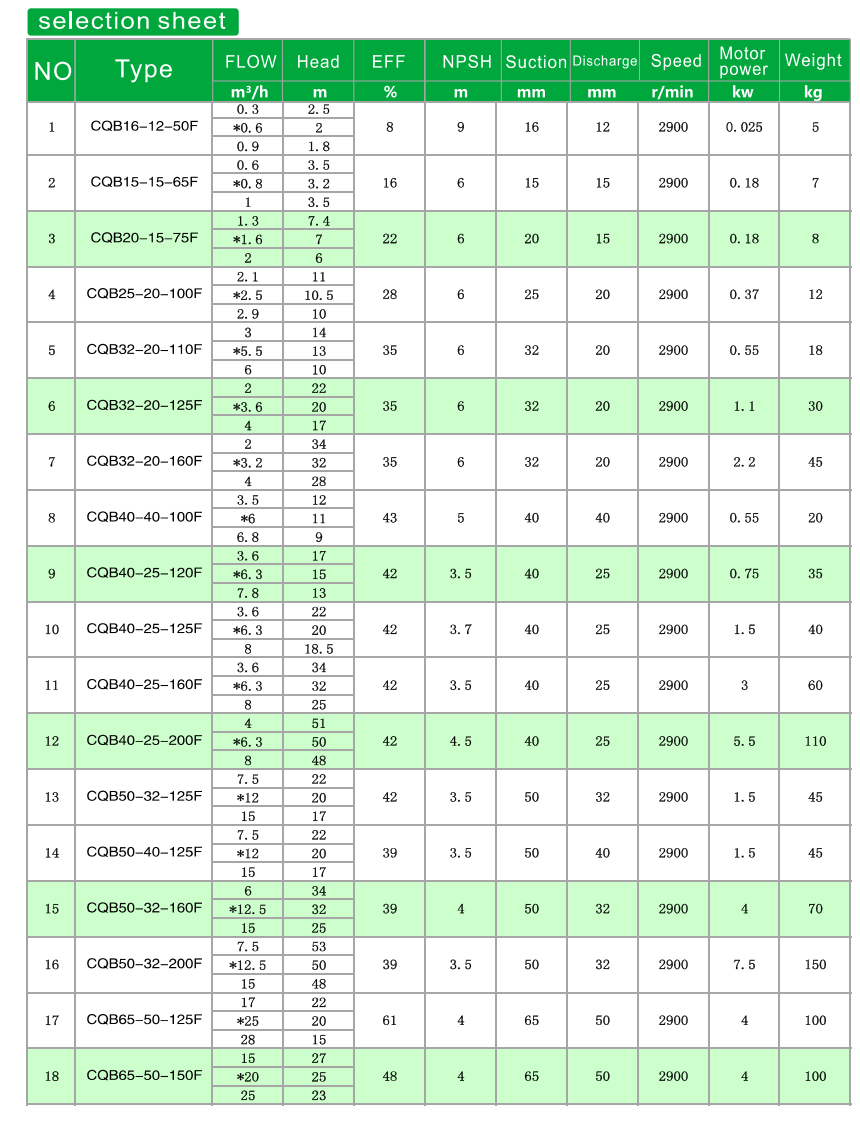

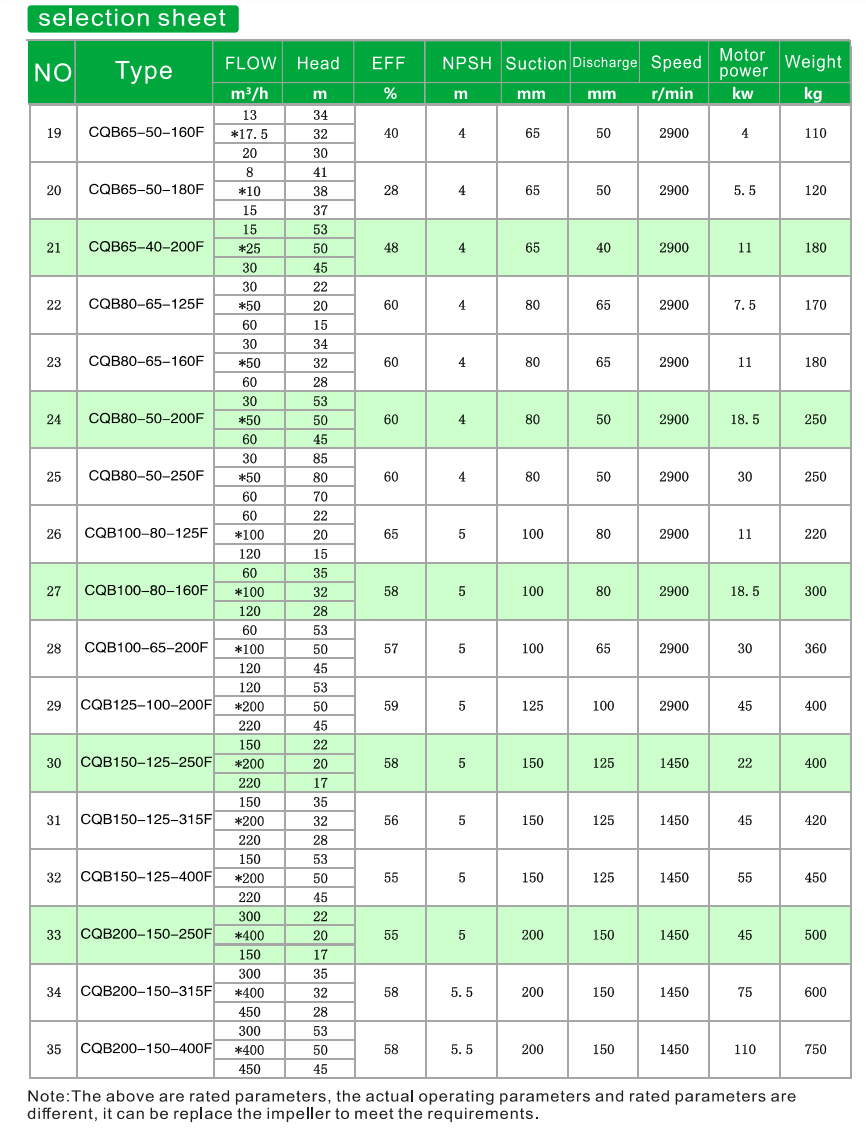

PRODUCT PARAMETERS

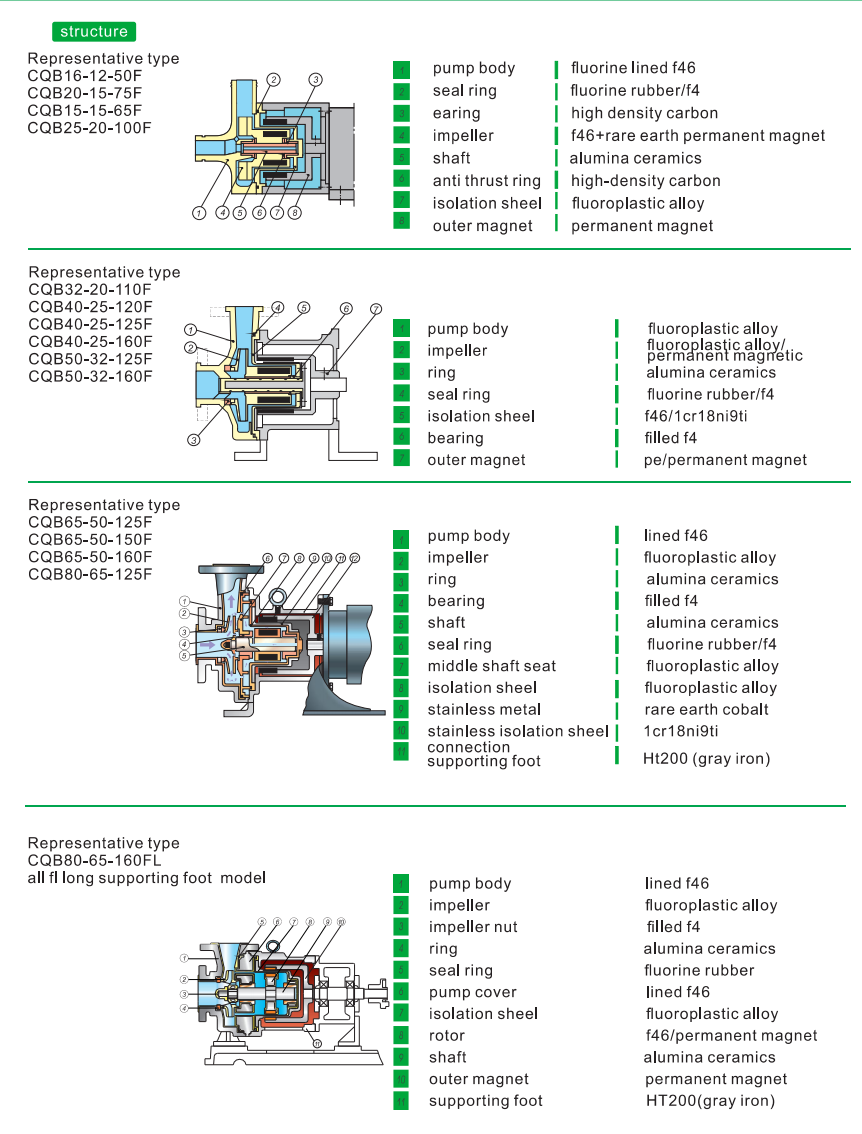

PRODUCT STRUCTURE DIAGRAM
