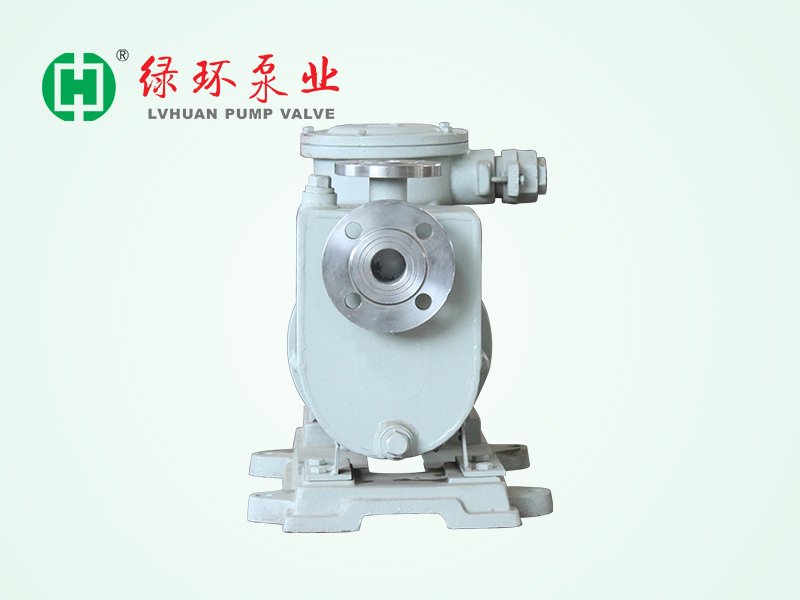

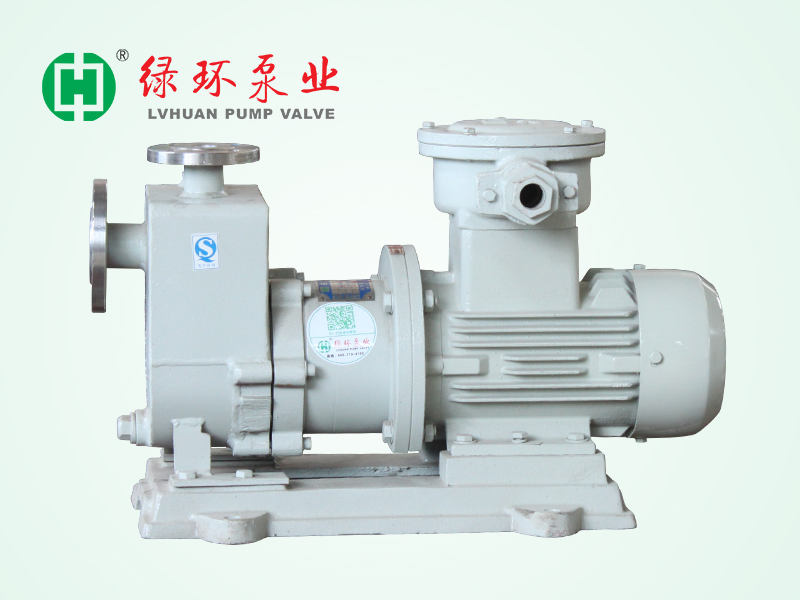

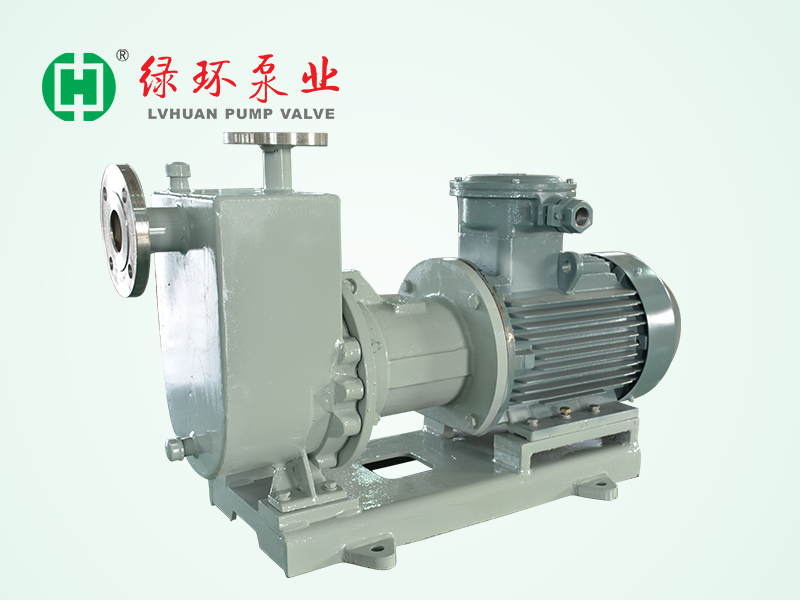

LZC Stainless Self-priming Magnetic Pump

Product Description

LZC type self-priming magnetic drive pump is on the basis of lcq type magnetic pump to absorb the excellent technology of peers, and through the repeated research and test of the company’s technical personnel and successful products, its performance has reached the advanced level of similar products. LZC type self-priming magnetic drive pump to static seal instead of dynamic seal, so that the flow parts in a completely sealed state, to solve the other pump mechanical seal, the inevitable running, bubbling, dripping, leakage of the ills, the pump body and flow parts are made of corrosion-resistant stainless steel, ceramic, PTFE graphite, carbon graphite, carbide and other materials. It has the function of LCQ type magnetic pump and integrates self-suction without bottom valve and irrigation water, open and pump, easy and convenient.

The pump adopts external mixing type axial return pump body structure, and the pump body composed liquid suction chamber, liquid storage chamber, volute, backflow hole, gas-liquid separation chamber and other parts (see the structure diagram). After the pump starts, under the action of centrifugal force, the remaining liquid in the suction chamber and the air in the liquid inlet pipe are stirred into a gas-liquid mixture by the impeller, and the mixture enters the gas-liquid separation chamber through the volute. As the speed slows down, the gas-liquid separation is caused, and the air is discharged from the pump outlet, the liquid returns to the pump through the backflow hole. After several cycles, the air in the liquid inlet pipe is discharged. The pump formed a certain degree of vacuum to achieve the role of self-priming function.

Design Feature

1, LZC non-leakage magnetic pump is fully sealed, no leakage, no pollution, high efficiency and energy saving industrial pump;

2, the pump body, impeller and pump cover using CFD computational fluid mechanics, design hydraulic parts, module design and precision casting. It has high efficiency, good cavitation capacity and small radial force. The size is accurate, the interchangeability is good, the flow path is spacious and smooth, etc.

3, Select ferrite magnets, with good magnetism, high temperature resistance, no demagnetization;

4, Dynamic ring, shaft sleeve, sliding bearing using wear-resistant high temperature graphite, PTFE and other materials, effectively ensure the service life;

5, Sealing using closed static seal, completely solve the medium leakage.

6, Without independent lubrication and cooling water, reducing energy consumption.

7, Horizontal installation, compact structure, small footprint, small vibration, low noise, especially smooth operation;

8, By the coupling transmission into synchronous drag, there is no contact and friction, and low power consumption, high efficiency, with damping damping, reducing the impact of motor vibration on the pump.

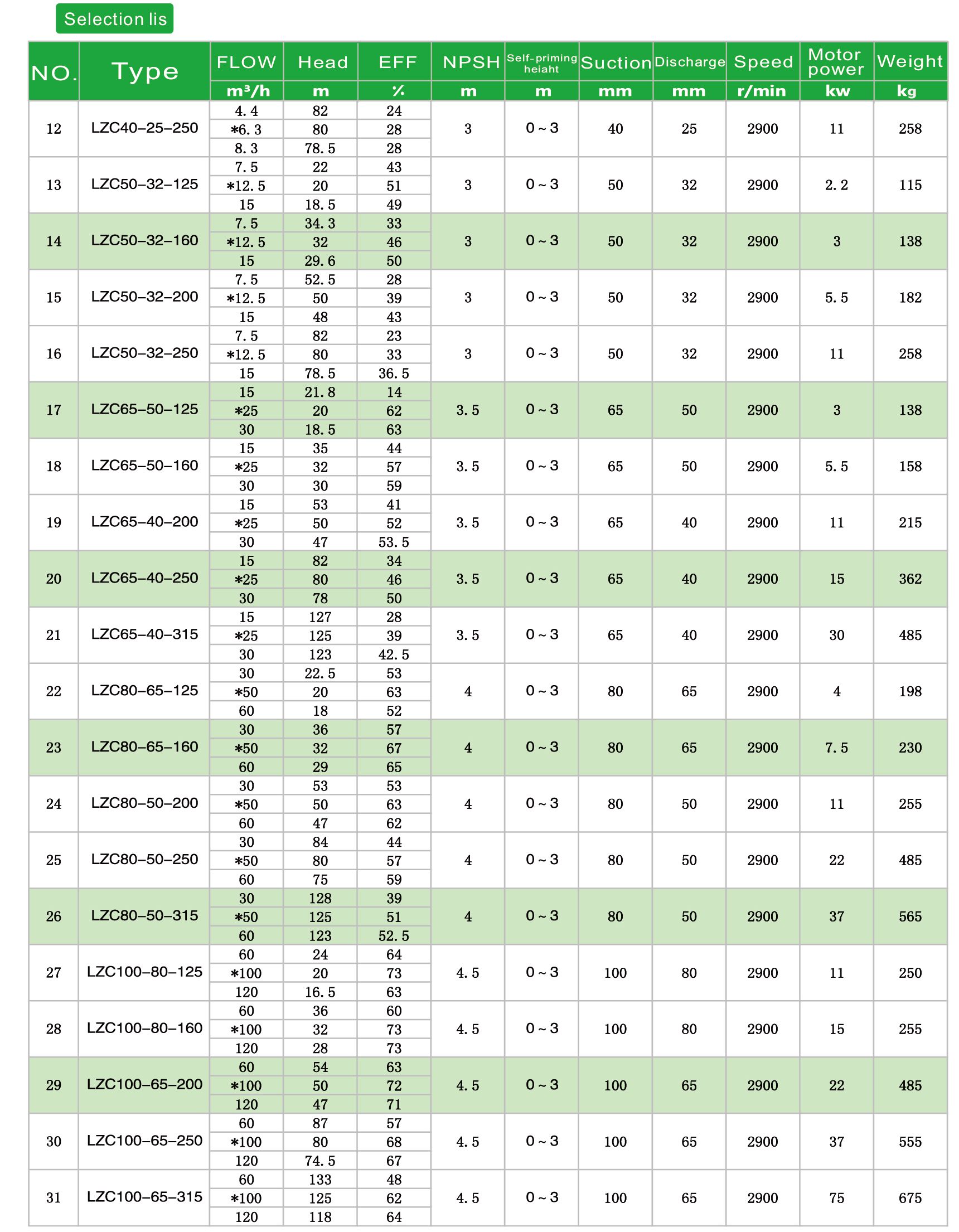

Product Parameters

Product Structure Diagram
