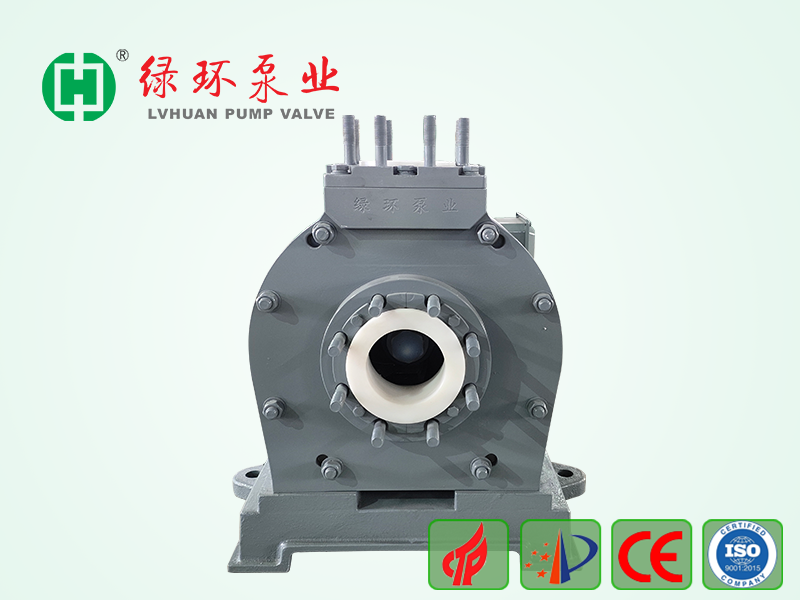

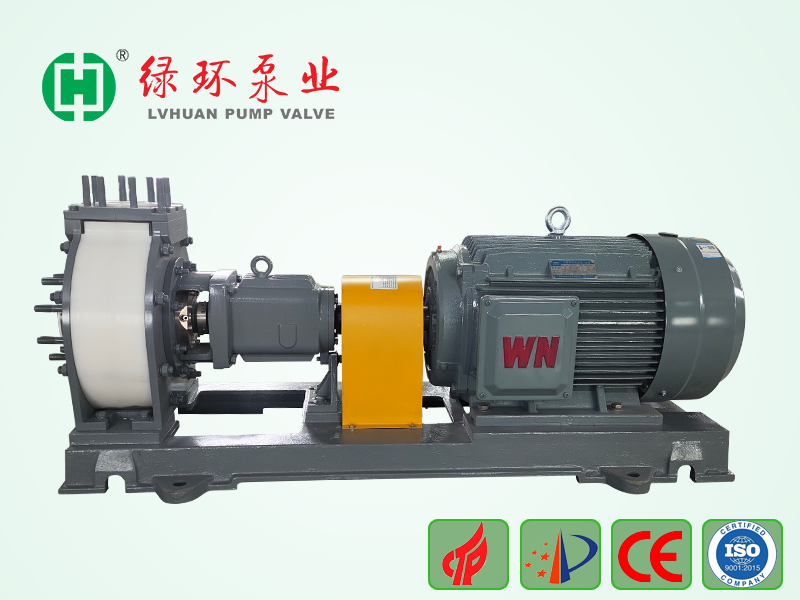

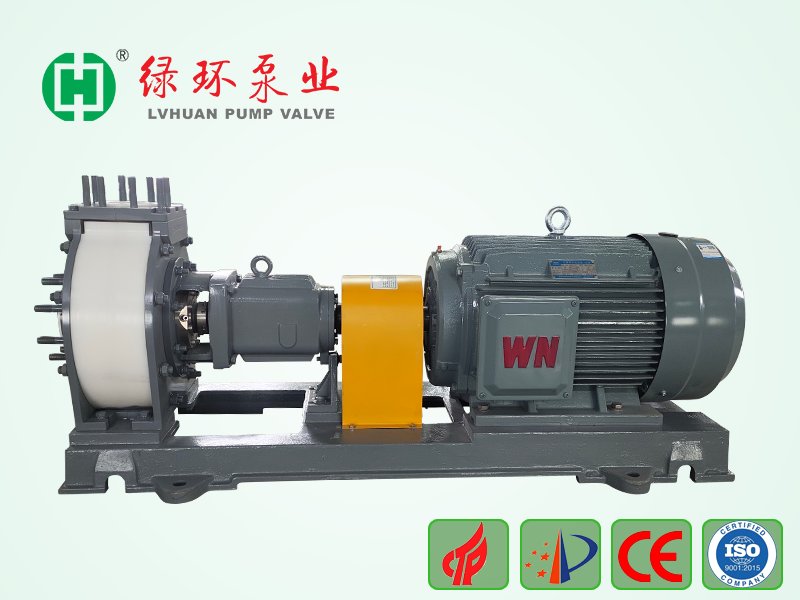

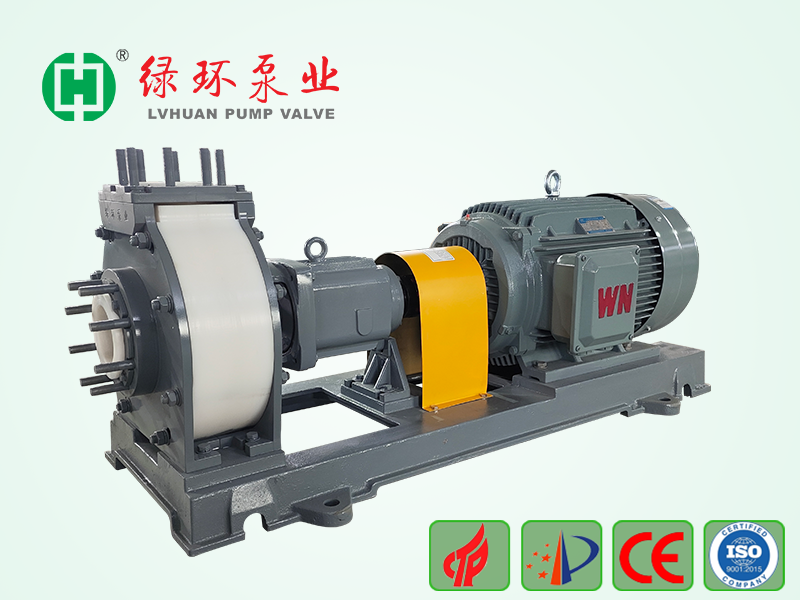

JFK Engineering Plastic Splint Pump

Anhui Lvhuan pumps co.,ltd was established in 2007, which is a national high-tech enterprises combined with research,development and production. We focus on the anti corrosive chemical liquid fluoroplastic pumps and stainless steel pumps more than 10

item no.:
JFK-0001
lead time:
7-10 dyas
product orgin:
Anhui
shipping port:
Any port in China
payment:
L/C or T/T
color:
Customer color
Lining plastic:
PE/ PP/ PTFE / FEP / PVDF / PFA
Use:
H2SO4 / HCL / HNO3 / NaOH / HF / CH3COOH
price range:
1000-20000

contact now

description

JFK Engineerig plastic Splint Pump
Introduction

JFK engineering plastic splint pump is a high-end corrosion and wear resistant centrifugal pump carefully built by R & D team for years. The pump adopts the latest international hydraulic model, the CFD calculation method.combined with relevant standards to design, its performance and size equivalent in line with ISO2858 standards.can be customized according to user requirements API610 standards.

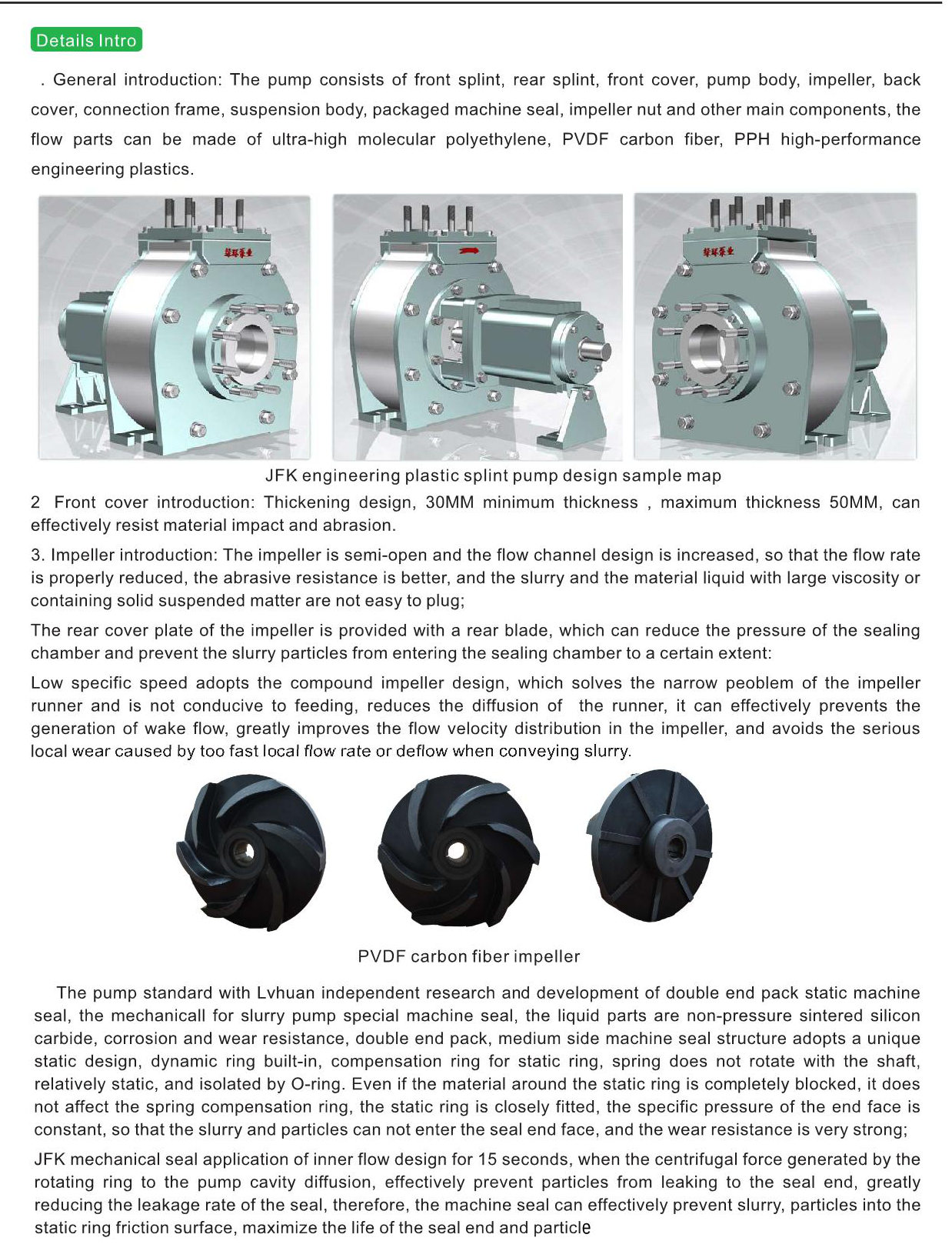

Pump body part adopts splint structure design, equipped with front cover and back cover, impeller is semi-open structure, pump body material standard with 6 million ultra high molecular polyethylene, can be equipped with high imported PVDF+C carbon fiber reinforced composite material, thickened design, the minimum design thickness is 3omm, strong wear resistance, the standard is patent double end mounted static mechanical seal. Itcan be widely used in "strong corrosion, strong abrasion, high temperature" conditions, as well as corrosive slurry conveying with easy crystallization and high solid content.

Design Characteristic

1. Structural advantages: OH1 standard, pump body with foot support, can bear a certain weight of the pipeline,front and rear splint structure, pump body part adopts front and rear door structure design, impeller is semi-open.convenient maintenance and repair.

2. Material advantage: The flow component material is standard with 6 milion ultra-high molecular polyethylenewhich has strong wear resistance. Under high temperature conditions, the green ring patented formula materialPVDF+C carbon fiber reinforced composite material can be selected, which has a rock hardness more than75HD, excellent wear resistance and long-term temperature resistance 140 degrees.

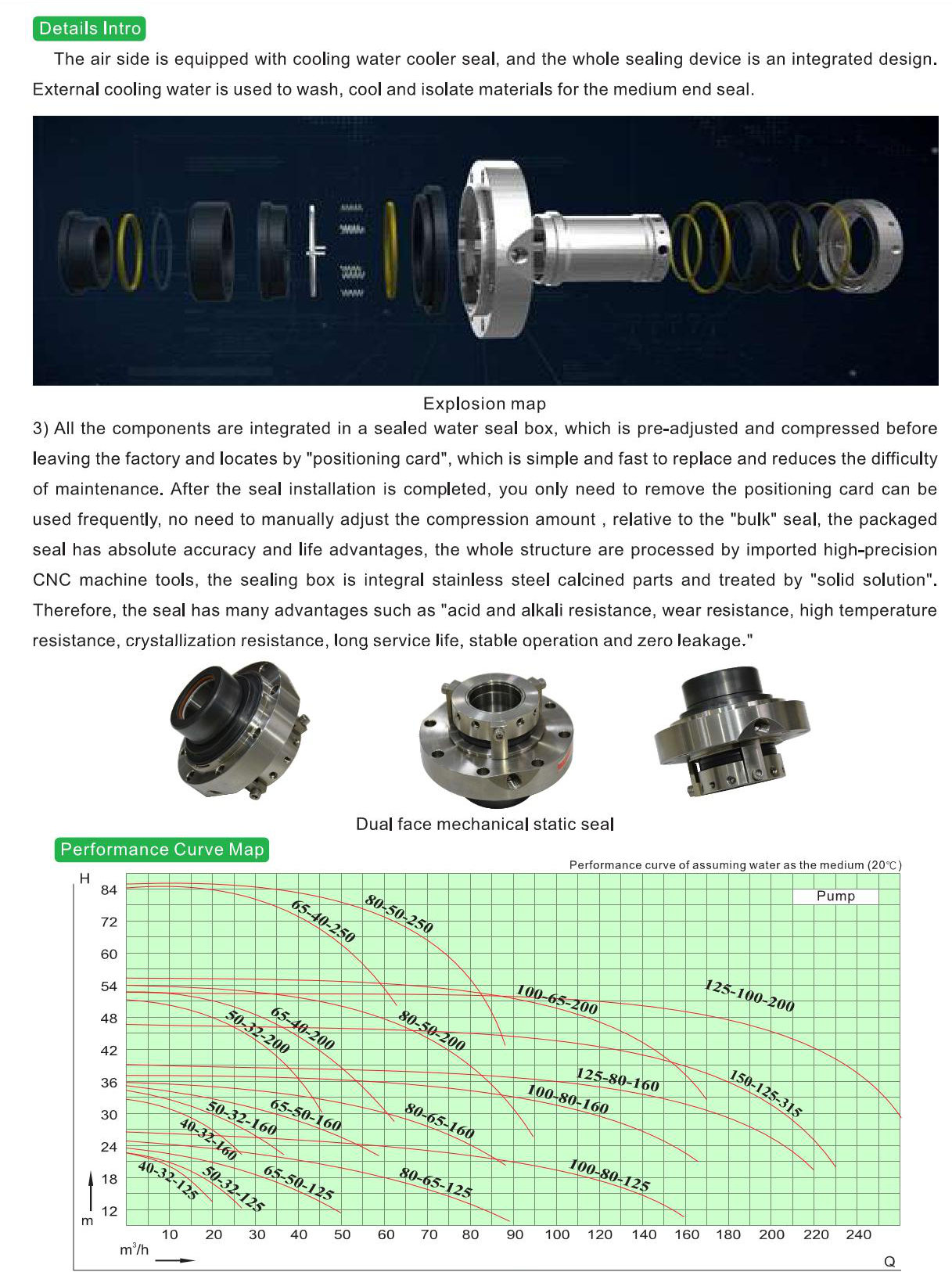

3. Advantages of the mechanical seal: The JFK series of integrated static machine seal is adopted by LvhuanCompany. The machine seal is patented by Ivhuan, which can transport slurry or crystalline material with solid content of more than 30%.

Mainly Application
pump design is positioned with high-end wear resistant pump, so it can be widely used in phosphatefertilizer, non-ferrous smelting, desulfurization and denitrification, lithium iron phosphate, iron and steel pickling.filter press feed and other industries or stations.Standard material (UHMW-PE) Applicable temperature :-20C-80 . High material (PVDF+C) applicable.

temperature :-40°C-140°C
