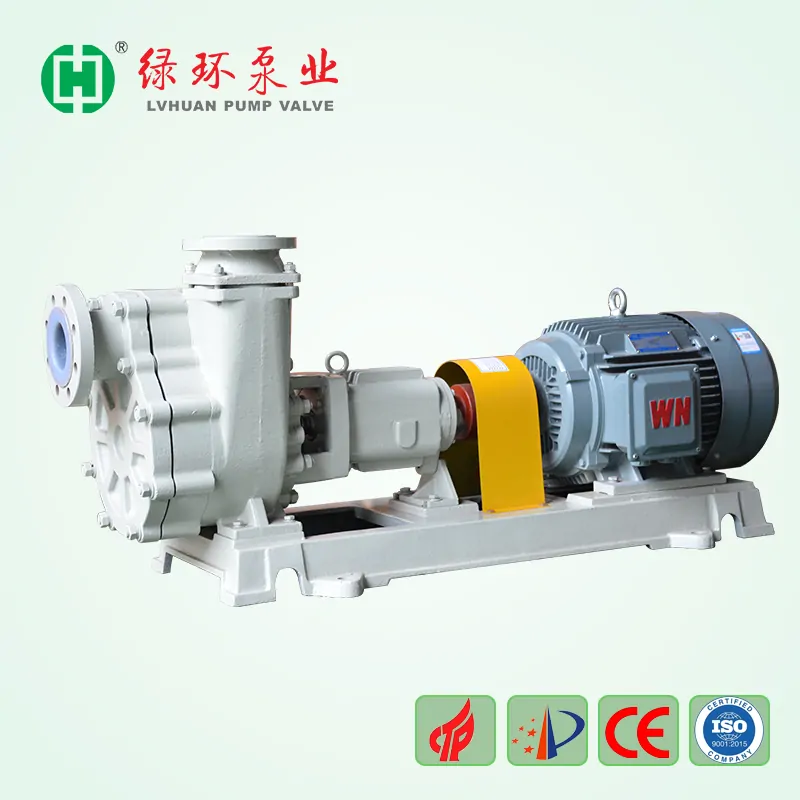

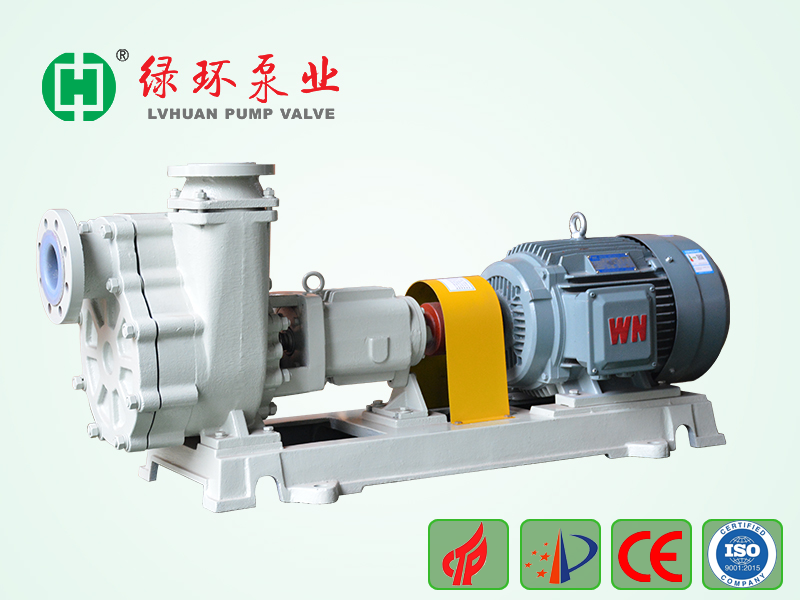

LZB Fluoroplastic Self-priming Pump

Product overview Lzb fluoroplastic self-priming pump is designed andmanufactured according to international standards andcombined with non-metal pump process. The pump body ismade of metal shell lined with fluorine plastic, all the flow partsare made
  • item no.:

    LZB
  • lead time:

    5-7 days
  • product orgin:

    ANHUI-China
  • shipping port:

    Any Port
  • payment:

    T/T
  • color:

    Grey
  • Lining plastic:

    FEP
  • Use:

    Chemical industry
  • price range:

    2000-6000USD
  • description

LZB Fluoroplastic Self-priming Pump
Product overview
Lzb fluoroplastic self-priming pump is designed andmanufactured according to international standards andcombined with non-metal pump process. The pump body ismade of metal shell lined with fluorine plastic, all the flow partsare made of fluorine plastic alloy, the pump cover and impellerare made of metal inserts, and the external bellows are used forshaft seal, the static ring is selected 99.9% alumina ceramic (or silicon carbide), and the dynamic ringis filled with four fluorine materials. It has excellent shoulder resistance and wear resistance. Thesuction and discharge are reinforced with cast steel body. To enhance the pressure resistance. Theactual use shows that the pump has the advantages of corrosion resistance, wear resistance, highhumidity resistance, no aging, high mechanical strength, stable operation, advanced and reasonablestructure, strict and reliable sealing performance, easy disassembly and maintenance, long servicelife and so on.

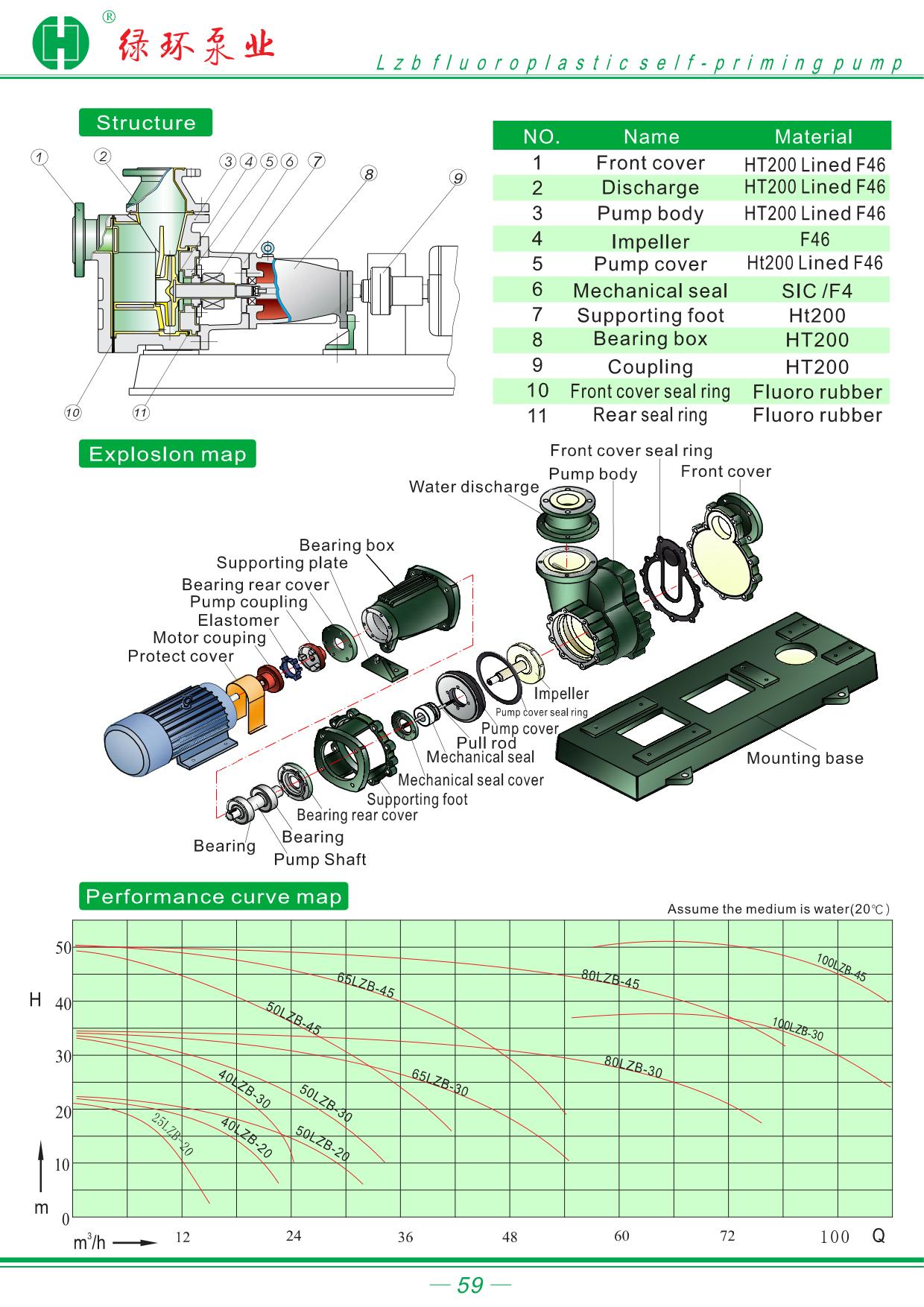

Design feature
The flow parts of the LZB self-priming pump are all fluorine plastic,which has strong corrosion resistance and self-priming ability.Therefore, the FZB self-priming pump is very widely used, such as:Pumping corrosive liquid in the underground tank to the targetlocation, pumping acid and alkali in the tank at the bottom of thedischarge port to the target location, pumping acid and lye in thebarrel to the large storage tank. And all kinds of corrosive tank truckunloading, etc.
The design principle of LZB self-priming pump is simple,reliable, and its good working performance has
been recognized by more and more users, and has been praised by many users.

Main use
Widely used in petroleum, chemical industry, acid, alkali, smelting, rare earth, pesticides, dyes, medicine,paper making, electroplating, electrolysis, pickling, radio, foil formation, scientific research institutions,national defense industry and other production processes, conveying corrosive liquids, especially suitablefor strong acid and alkali, organic solvents and precious liquid suction post pumping.
The applicable temperature :-20°C-100°C.

Request a free quote

  • subject :

    LZB Fluoroplastic Self-priming Pump
  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
