LSB Fluorine Plastic Centrifugal Pump

LSB fluorine plastic centrifugal pump Product overview The LSB(d) fluorine plastic alloy centrifugal pump, can be used in the temperature of -80 to 120 C, long-term transport of any concentration of various acids, alkali, salt, strong oxidants,and oth

item no.:
LSB
lead time:
5-7 days
product orgin:
ANHUI-China
shipping port:
Any Port
payment:
T/T
color:
Grey
Lining plastic:
Unsupportable
Use:
Chemical industry
price range:
2000-6000USD

contact now

description

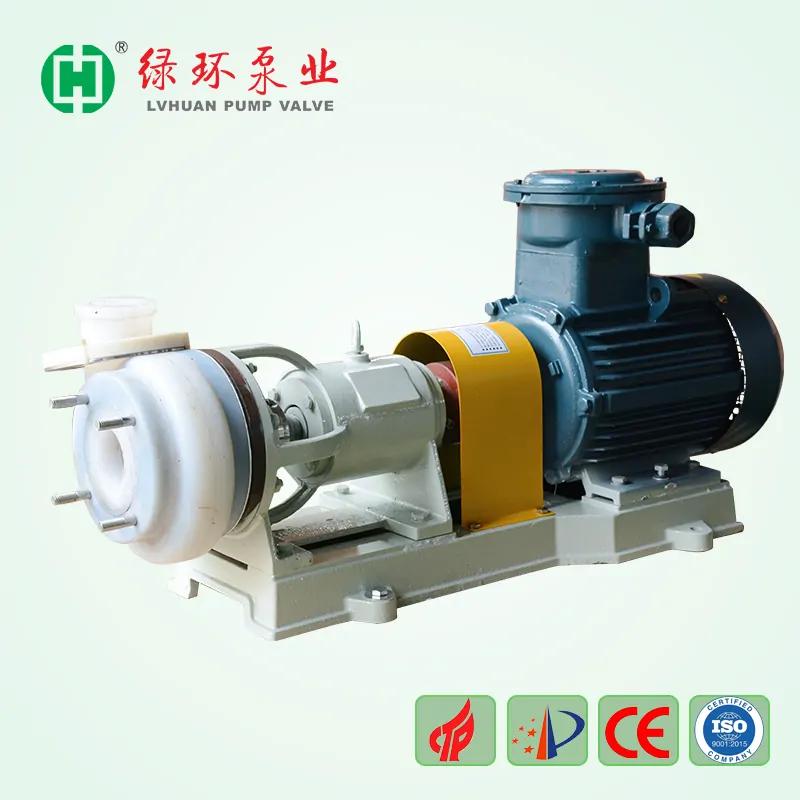

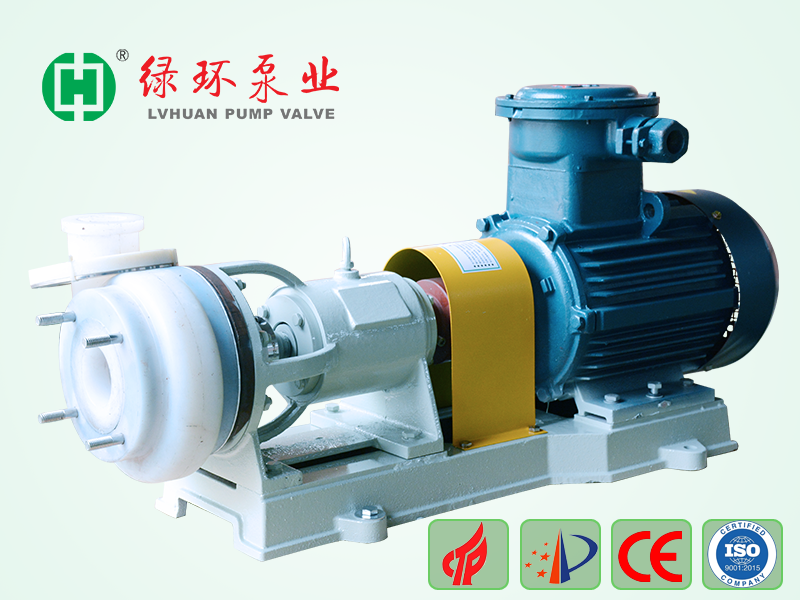

LSB fluorine plastic centrifugal pump

Product overview

The LSB(d) fluorine plastic alloy centrifugal pump, can be used in the temperature of -80 to 120 °C, long-term transport of any concentration of various acids, alkali, salt, strong oxidants,and other corrosive media, its shell and flow part are all made of F46 fluorine alloy, it sets a variety of fluorine plastic advantages, with exceptionally strong corrosion resistance,and has mechanical strength high, no aging, no toxin decomposition advantages. The product has high mechanical strength, reasonable design, compact structure, reliable performance, easy use and maintenance, smooth flow channel, high efficiency and energy saving, and won the "National science and technology award".

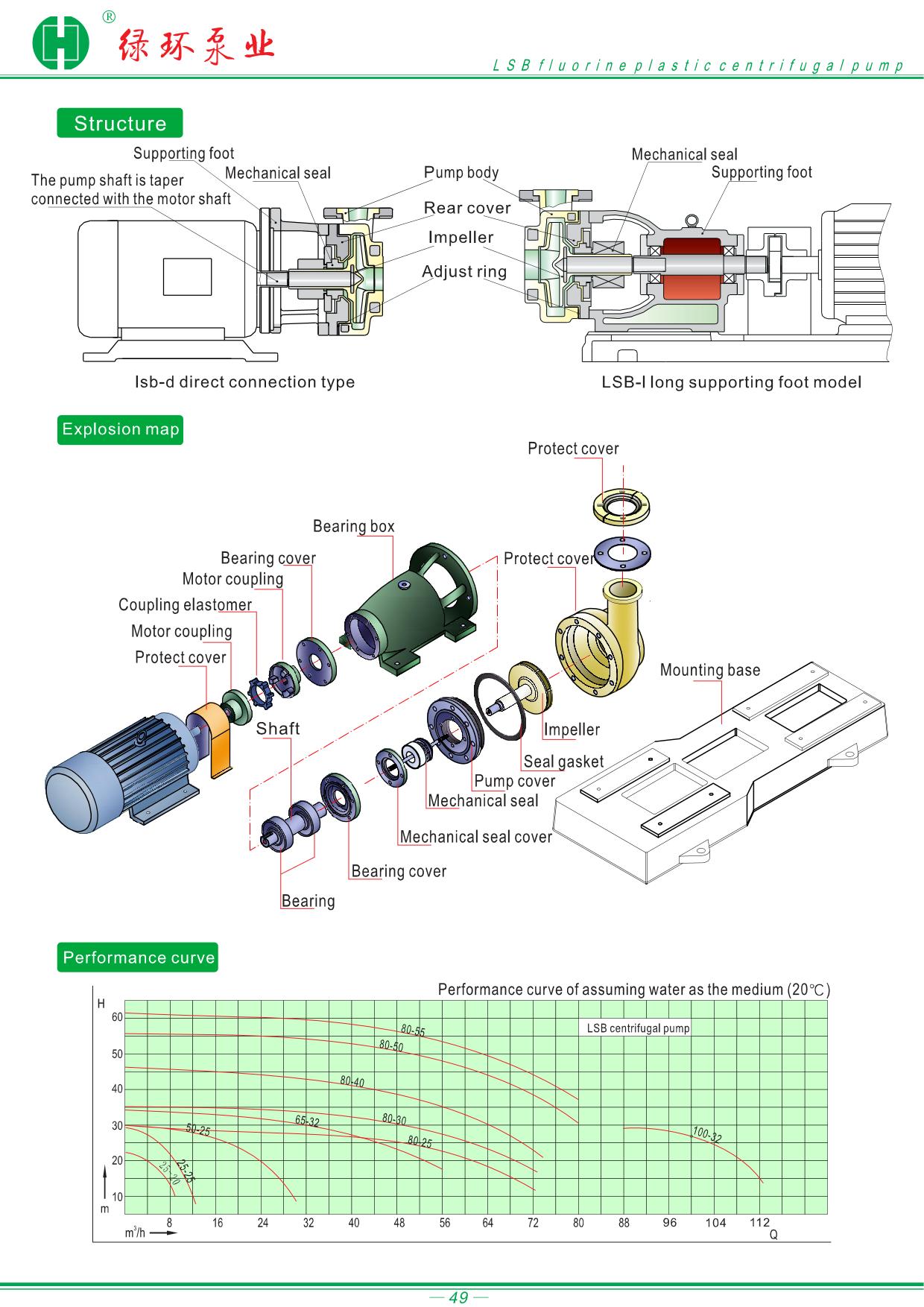

Design feature

1. Lsb fuoroplastic alloy centrifugal pump is a new type of acid-resistant centrifugal pump with small flow, low head, fullseal, highefficiency and energy saving;
2 the pump body, impeller and pump cover use cfd computational fuid mechanics, design hydraulic components, module design andsintering. It has the characteristics of high efficiency. good cavitation residual performance,small radial force, accurate size, goodinterchangeability, spacious and smooth flow path, etc.
3. The pump body is made of fluorine plastic, the internal design of steel skeleton, internal and external corrosion prevention, andhigh strength.

4. Fluorine plastic alloy (PTFE, FEP) is an excellent corrosion resistant material (commonly known as: Plastic king), any strong(strong) degree of acid, alkali, oxidizer and other corrosive media without damage
5. The external bellows mechanical sealselected by the shaftseal can be adjusted withoutdisassembly, and the sealing surface ofhe grinding can be optional: Silicon carbide, non-pressure sintered silicon carbide, ceramics.PTFE, cemented carbide and othermaterials to meet the requirements of conveying various media, to ensure the service life of the mechanical seal.
6.no need for independent lubrication and cooling water, reducing energy consumption.
7. itis divided into two structural forms oflong support axial connection and short support direct connection, easy maintenance.
8. horizontal installation, compact structure, small footprint, small vibration, low noise, stable operation;

Main use

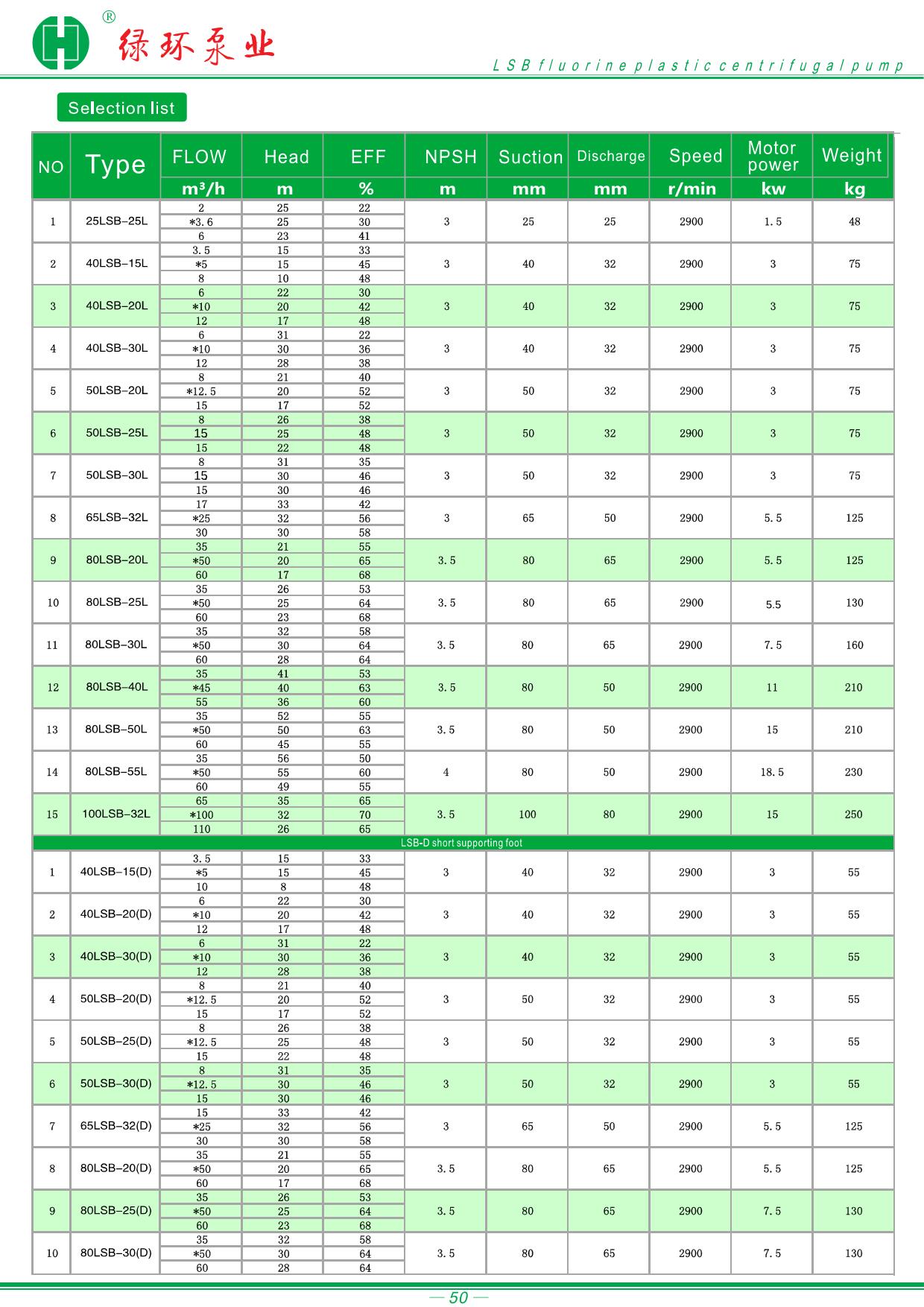

This product total more than 20 specifications, flow, head range is wide. It is suitable for petroleum, chemical.pharmaceutical, pesticide, pickling, dye, paint, smelting. paper making, electroplating. food and other industries.to transport liquid, prevent running, taking, dripping, leakage, is the ideal equipment for the construction ofmodern factory.

The applicable temperature :-20°C-100%C.

tags : LSB PTFE FEP Fluorine Plastic Centrifugal Pump
