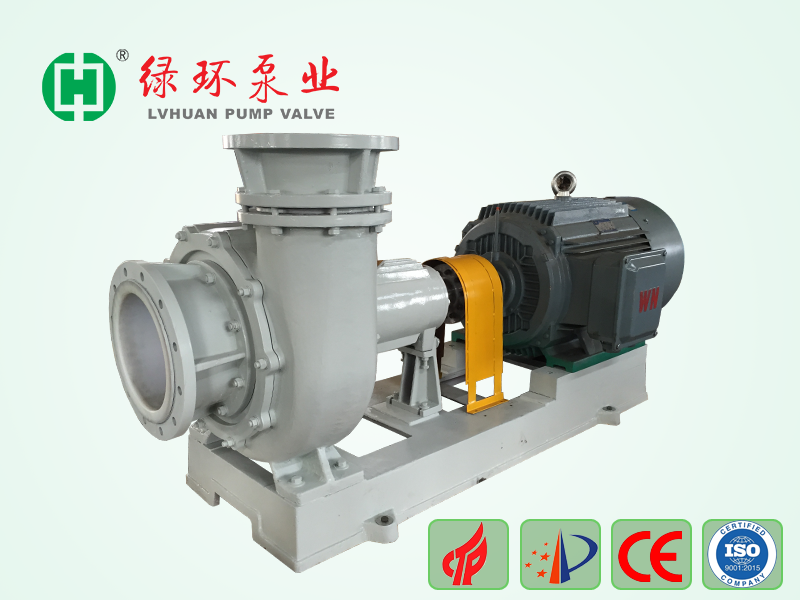

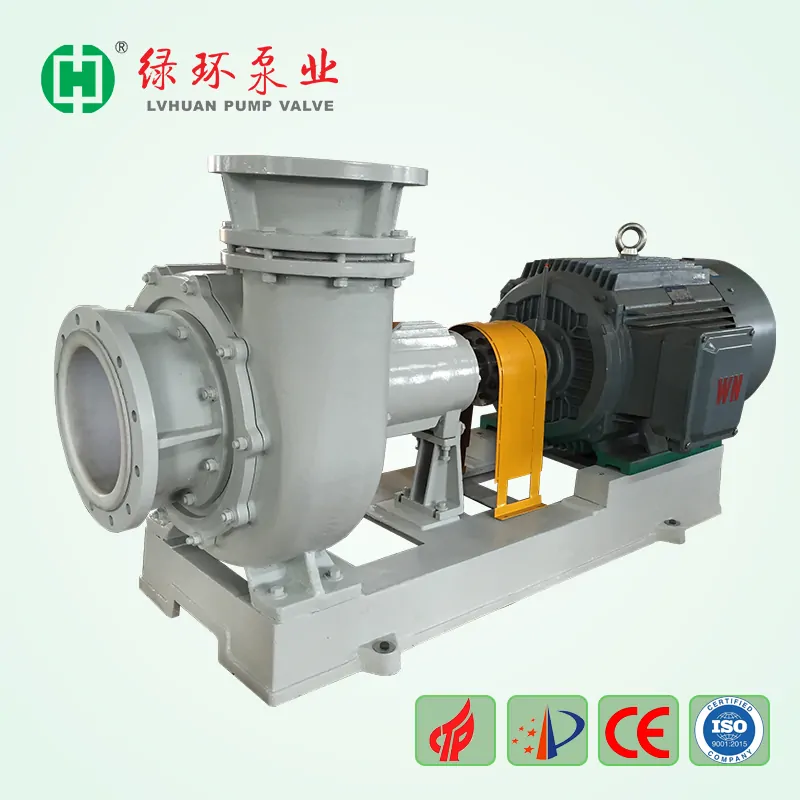

LMU PE Corrosion Resistant Abrasive Slurry Pump

LMU corrosion resistant abrasive slurry pump Product overview LMU slurry pump is a cantilever type single-stage single-suction centrifugal pump, whichis specially designed and developed by our factory for conveying corrosive mediacontaining fine parti

item no.:
LMU
lead time:
5-7 days
product orgin:
ANHUI-China
shipping port:
Any Port
payment:
T/T
color:
Grey
Lining plastic:
Unsupportable
Use:
Chemical industry
price range:
2000-6000USD

contact now

description

LMU corrosion resistant abrasive slurry pump

Product overview

LMU slurry pump is a cantilever type single-stage single-suction centrifugal pump, whichis specially designed and developed by our factory for conveying corrosive mediacontaining fine particles. The pump is made of steel lined ultra-high molecular weightpolyethylene (uhmw-pe), which has strong corrosion resistance and excellentperformance wear resistance, can be widely used in a variety of corrosive abrasive.

Design feature

1, strong wear resistance: The flow parts are all made of steel lined ultra-high molecular weight polyethylene (uhmw-pe), ultra-highmolecular weight polyethylene (uhmw-pe) has excellent abrasion resistance, 4 times higher than nylon 66(pa66), poytetrafluoroethylene(PTFE),is carbon7-10 times the wear resistance of steel and stainless steel.
2, strong impact resistance: The impact strength of ulra-high molecular weight polyethylene is also very good, is 5 times that of (acrylonitrile/butadiene/styrene) copolymer (abs), and can remain stable at -196 ° C. which is not a feature of any other plastic.
3, excellent corrosion resistance: The pump in a certain temperature and concentration range can resist a variety of corrosive media(acid, alkali, salt), in 20 -90 80 kinds of organic solvents impregnation 30d, appearance without any abnormal phenomenon, other physical properties are almost no change.
4, ultra-high molecular weight polyethylene impact absorption is very good in plastics, good noise reduction.
5, safe and reliable, no toxin decomposition, so it is also suitable for the food industry.
6, the coefficient of friction is low, only 0.07-0.11, so it has self-lubrication. Under the condition of water lubrication, its dynamic frictioncoefficient is half lower than pa66 and pom. When working in sliding or rotating form, the lubricity is more ideal than that of steel and brassafter lubricating. Therefore, it is rated as a wear-resistant material with "Very ideal cost/performance".

Main use

(1) sulfuric acid phosphate fertilizer industry: Dilute acid, mother liquor, sewage, seawater, silica-containing fluorosilicic acidphosphate slurry and other media transportation.
(2) non-ferrous metal smelting industry: Especially suitable for lead, zinc. gold, silver, copper, manganese., coball, rare earth andother wet smelting of various acid, corrosive pulp, slurry (fiter press) electrolyte, sewage and other media transport.
(3) chemical and other enterprises: All kinds of sulfuric acid, hydrochloric acid, alkaline, oil clear liquid or slurry positionsTitanium dioxide, iron red powder production, various dyes, pigment production, non-metallic mineral processing and otherindustries.
(4) chlor-alkali industry: Hydrochloric acid, liquid alkali, electrolyte, etc.
(5) water treatment industry: Pure water, high purity water, sewage (leather sewage, electroplating sewage, electronic sewage.paper sewage, textile sewage, food sewage, domestic sewage, pharmaceutical industry sewage, etc.
(6) iron and steel enterprises: Sulfuric acid, hydrochloric acid post of pickling system, sewage with impurities.
(7) wet desulfurization circulating pump: Can be applied to alkaline, acidic, corrosive positions at the same time.
(8) transportation of corrosive liquids and coal slurry in coal industry and coal chemical industry; pump for coal washing andpreparation.
(9) can not transport strong oxidizing acids (such as concentrated sulfuric acid and nitric acid), can not transport solvent mediasuch as benzene)

tags : PE Slurry Pump
