LGF Fluorine Lined Vertical Pipeline Pump

LGF fluorine lined vertical pipeline pump Product overview LGF fluoroplastic lined pipeline pump is a single stage single suctionvertical structure centrifugal pump, the import and export are the same,and in the same straight line. The flow parts are

item no.:
LGF
lead time:
5-7 days
product orgin:
ANHUI-China
shipping port:
Any Port
payment:
T/T
color:
Grey
Lining plastic:
PE FEP PFA
Use:
Chemical industry
price range:
2000-6000USD

contact now

description

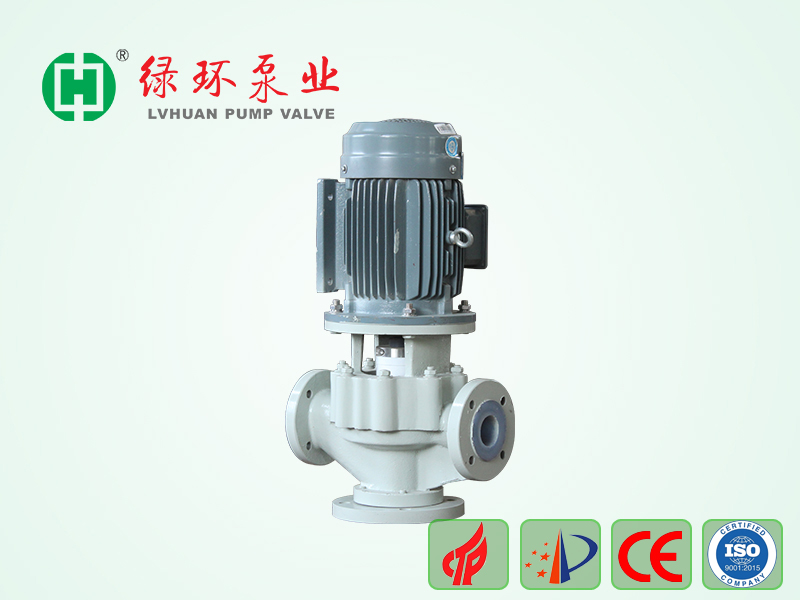

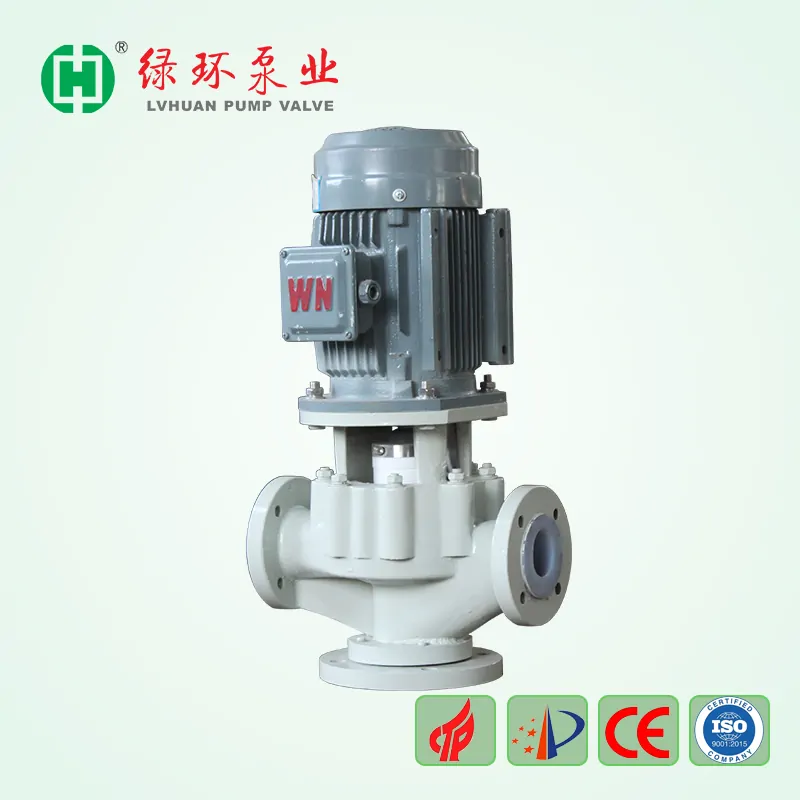

LGF fluorine lined vertical pipeline pump

Product overview

LGF fluoroplastic lined pipeline pump is a single stage single suctionvertical structure centrifugal pump, the import and export are the same,and in the same straight line. The flow parts are all lined with fluoroplastic(f46). The external mounted tetrafluorobellows mechanical seal used inthe pump can be equipped with a hard to hard (silicon carbide to siliconcarbide) mechanical seal without cooling water when conveying mediacontaining impurities particles, so the user needs to take into account thesolid content in the medium when selecting.

Design feature

1, Igf fluorine lined pipeline centrifugal pump is combined with pipeline centrifugal pump, non-metal pump process design and manufacture, with corrosion resistance, high temperatureresistance, no aging, high mechanical strength, efficient energy saving and other advantages.
2, the pump body, impeller and pump cover using cfd computational fluid mechanics, designhydraulic components, module design and sintering. It has the characteristics of highefficiency, large cavitation allowance, good performance, small radial force, accurate size,good interchangeability, spacious and smooth flow path, etc.

3, fluorine plastics (PTFE, FEP, pfa) is a very good corrosion resistant material(commachinemonly known as: Plastic king), can transport any strong (strong) degree of acid,alkali, oxidizer and other corrosive media without damage.
4, the shaft seal uses advanced external bellows mechanical seal, can adjust the seal withoutdisassembly, the grinding sealing surface can be optional: Silicon carbide, pressless sinteredsilicon carbide, ceramics, tetrafluoride, cemented carbide and other materials, in order tomeet the requirements of various media, to ensure the service life of the mechanical seal.
5, without independent lubrication and cooling water, reducing energy consumption.
6, direct connection type pull back design, no need to disassemble the pipe, easy maintenance.

7, vertical installation, compact structure, small footprint, small vibration, low noise, especially smooth operation.

Main use

LGF fluorine lined pipeline pump for conveying or pressurizing acid, alkali, organic solvent,strong oxidizer and other corrosive media. It is suitable for industrial production drainageliquid, high-rise tank pressurization conveying medium, garden sprinkler irrigation, firepressurization, long-distance conveying, hvac refrigeration cycle, bathroom and other coldand warm water circulation pressurization and equipment matching.

Operating temperature -20°C~120°C.

tags : FEP PFA Vertical Pipeline Pump

previous :
LMU PE Corrosion Resistant Abrasive Slurry Pump

Request a free quote
